21st Century Human Torpedo - Gabler SDV

Gabler SDV

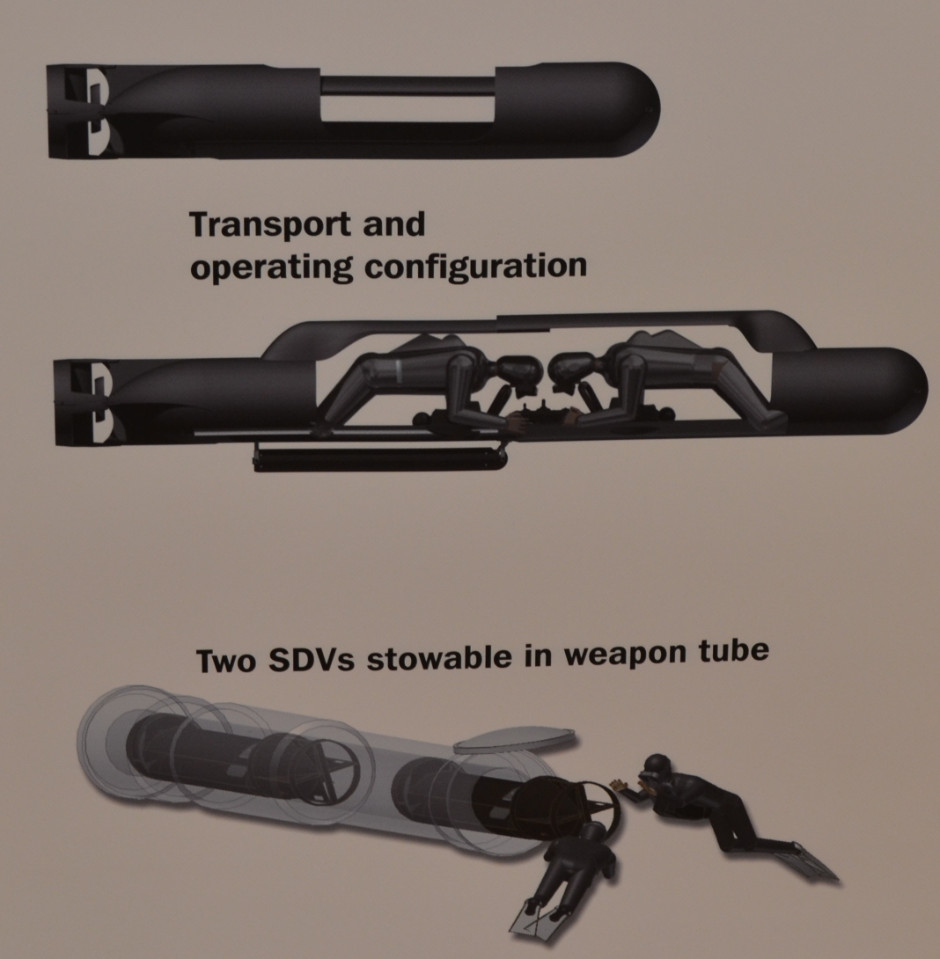

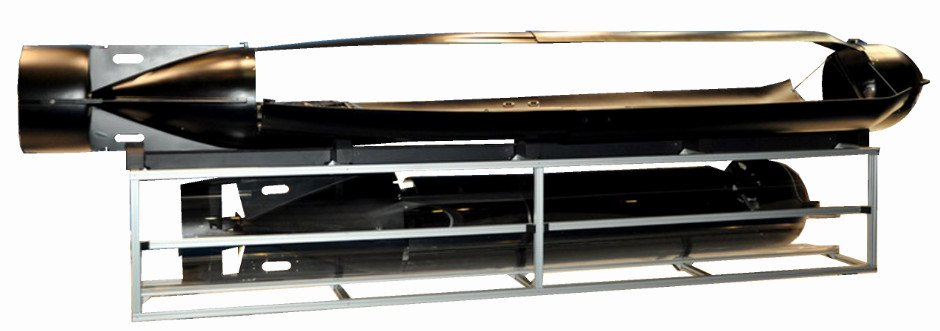

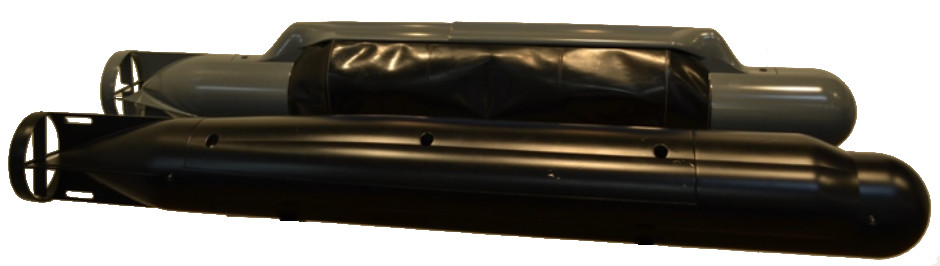

Dubbed the Sea Devil and 'Unterwasserschwimmhilfe' (underwater swimmers' float), Gabler's two-man SDV (Swimmer Delivery Vehicle) is a unique reintrepration of the Human Torpedo concept. It is closest to the Russian Sirena series of SDVs, although a closer comparison might be the Swedish (/British) Torpedo-SEAL DPV. Designed to fit within standard 533mm (21") submarine torpedo tubes, it collapses in on itself for storage. This reduces the length and diameter and allows two to be stored in a single torpedo tube.
Gabler SDV
Gabler SDV
Gabler SDV

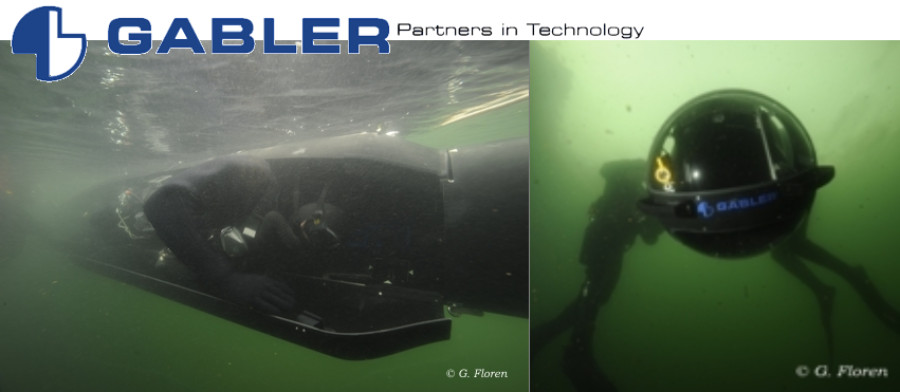

The body is almost entirely diver accomodation so although it is torpedo shaped, it is quite slow and performance is generally similar to top-end DPVs.

Check out the manufacturer's website Gabler Maschinenbau

Gabler SDV
Gabler SDV
Gabler SDV

Patent sketches
