This article will cover contemporary heavyweight (533mm / 21") torpedoes. It will be extensive but not necessarily exhaustive. If you do not see the torpedo you are looking for, please try back at a later date.

Mk-48 ADCAP, US

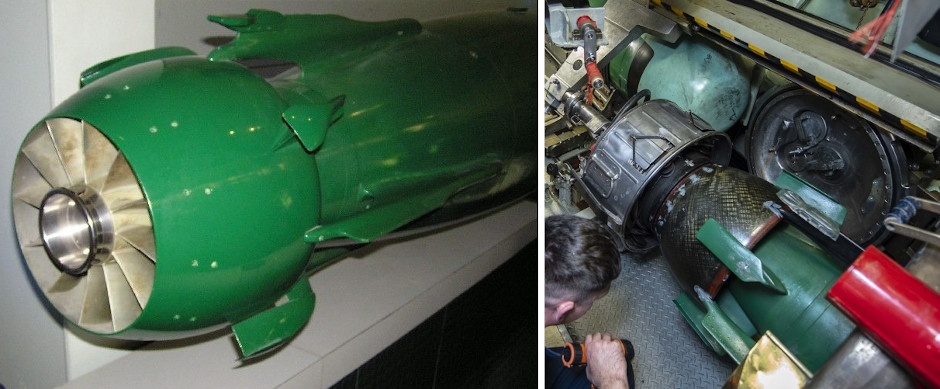

Flag The Mk-48 was one of the first western torpedoes designed to counter extra-fast deep diving submarines such as the Alfa Class. It was also designed to operate under the ice cap and, generally, in a wider envelope than most torpedoes. As torpedoes generally improve, the Mk-48 stays in the top tier with the upgraded ADCAP (Advanced Capability) version. This has improved situational awareness.
World Heavyweight Torpedoes - Covert shores
Mk-48 ADCAP specifications (Estimated where necessary - reported data is vastly understated)
Mode: Dual-purpose
Length: 5.79 m
Diameter: 533mm (21")
Range: > 25 nautical miles
Speed: 55 kt reported, probably higher
Max Depth: ++
Warhead: 295 kg
Propulsion: Thermal driving a pumpjet
Main guidence: Wire-guided

Spearfish, UK

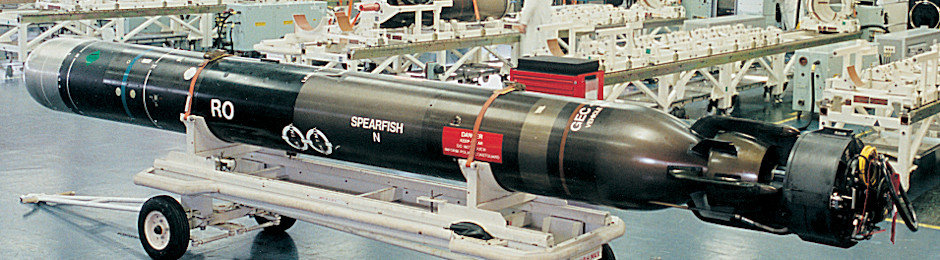

Flag Generally on a par with the US Navy's Mk-48 ADCAP, the Spearfish was designed to tackle similar Russian (then Soviet) high-performance submarines. The two weapons have their own pros and cons.
World Heavyweight Torpedoes - Covert shores
A prototype of the next-generation Spearfish Mod-1 has been tested. The Mod-1 incorporates a single-fuel thermal motor and an insensitive warhead to improve safety.
Spearfish Mod-0 specifications (Estimated where necessary - reported data is vastly understated)
Mode: Dual-purpose
Length: 7 m
Diameter: 533mm (21")
Range: > 27 nautical miles
Speed: 80 kt reported (might be exagerated)
Max Depth: +++
Warhead: 295 kg
Propulsion: Thermal (HAP / Otto fuel II) driving a pumpjet
Main guidence: Wire-guided


Get The essential guide to World Submarines
This Covert Shores Recognition Guide Covers over 80 classes of submarines including all types currently in service with World Navies.
Check it out on Amazon

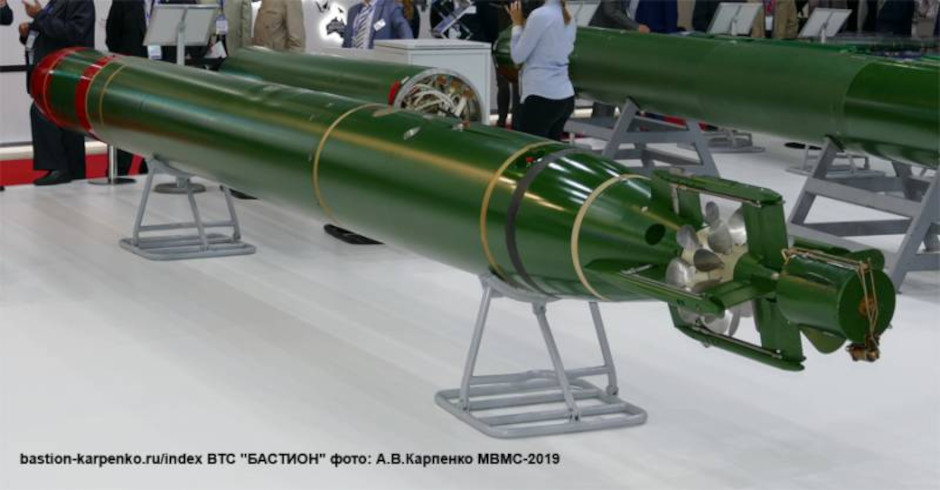

UGST / UGST-M, Russia

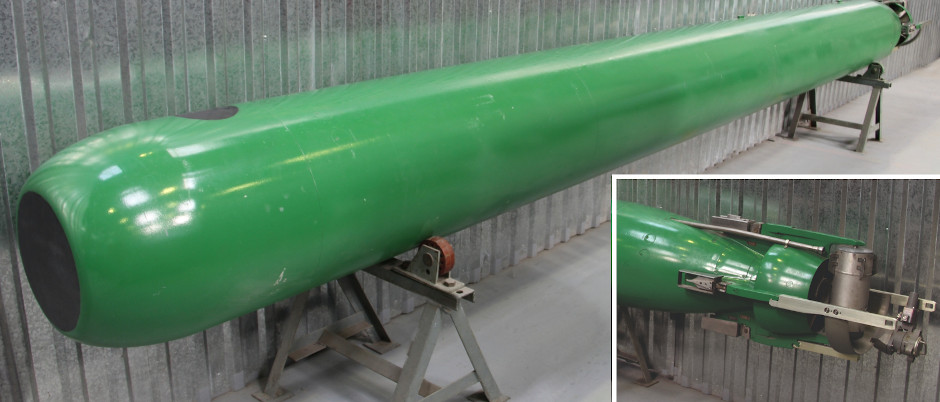

Flag The Universal deepwater homing torpedo (UGST), aka physicist, is the main 533mm torpedo for Russian submarines.
World Heavyweight Torpedoes - Covert shores
UGST specifications (As reported)
Mode: Dual-purpose
Length: 7.02 m
Diameter: 533mm (21")
Range: 13.5 nm @ 50 kt or 27 nm @ 40 kt
Speed: 50 knots
Max Depth: 500 m
Warhead: ~300 kg
Propulsion: Thermal driving a pumpjet
Main guidence: Wire-guided

The improved UGST-M (aka Case) has is visibly distinct with a redesigned propulsor and fins.

Type 89B, Japan

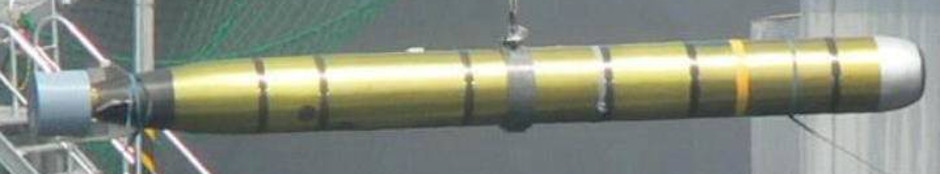

Flag The submarine launched Type-89B is seen as the Japanese equivalent of the Mk-48.
World Heavyweight Torpedoes - Covert shores
Type 89B specifications (As reported)
Mode: Dual-purpose
Length: 6.25 m
Diameter: 533mm (21")
Range: 27 nm at 40 kt, 21 nm at 55 kt
Speed: Est 70 knots
Max Depth: 900 m
Warhead: 267 kg
Propulsion: Thermal (Otto fuel II) driving a pumpjet
Main guidence: Wire-guided


The World's ONLY Guide to
Narco Submarines
10 years of research, analyzing over 160 incidents, condensed into a handy guide. This unique book systematically breaks down the types and families. With detailed taxonomy, recognition 3-views, profiles and photos. Available on Amazon


Torped-62, Sweden
Flag The main weapon in swedish service is the 533mm (21") Torped-62 heavyweight torpedo (HWT). It is wire guided and can track and classify several targets simultaneously. It has four times the range of the older Type-613. An export model has been marketed as Torpedo 2000 but is now referred to by Saab simply as the Heavyweight Torpedo (HWT).
World Heavyweight Torpedoes - Covert shores
Torped-62 specifications (As reported)
Mode: Dual-purpose
Length: 5.99 m
Diameter: 533mm (21")
Range: 22 nm
Speed: 40+ knots
Max Depth:
Warhead:
Propulsion: Hydrogen peroxide and kerosene driving a pumpjet
Main guidence: Wire-guided

F21 Artémis, France

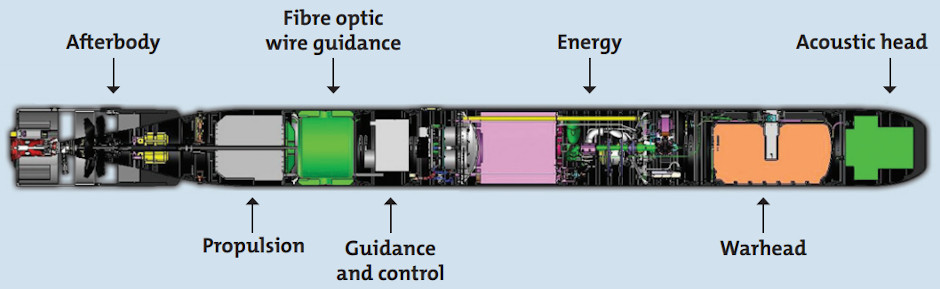

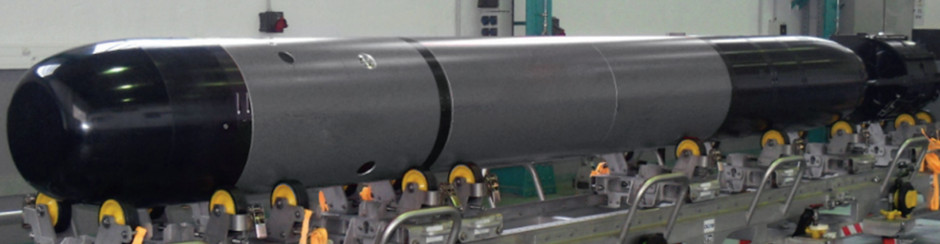

Flag The F21 represents France's answer to the all-electric trend. Its performance approaches that of thermal torpedoes. It is carried by French Navy submarines and has been exported to Brazil. The first production batches were delivered in 2020.
World Heavyweight Torpedoes - Covert shores
F21 specifications (As reported)
Mode: Dual-purpose
Length: 6 m
Diameter: 533mm (21")
Range: 27+ nm
Speed: 50+ knots
Max Depth: 500 m (also reportd as 1000 m)
Warhead:
Propulsion: Electric (silver oxide-aluminium (AgO-Al) sea-water battery)
Main guidence: Wire-guided
World Heavyweight Torpedoes - Covert shores


Learn EVERYTHING about Special Forces subsCovert Shores 2nd Edition. A world history of naval Special Forces, their missions and their specialist vehicles. SEALs, SBS, COMSUBIN, Sh-13, Spetsnaz, Kampfschwimmers, Commando Hubert, 4RR and many more.
Check it out on Amazon

Black Shark Advanced (BSA), Italy

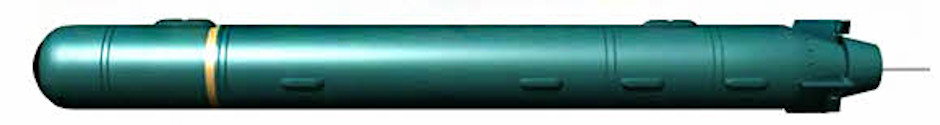

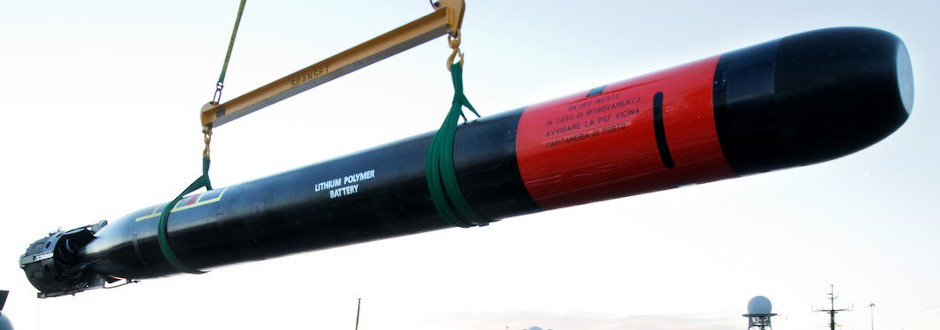

Flag The Black Shark Advanced (Nuovo Siluro Pesante) is a new future torpedo for the Italian Navy's Type 212 Todaro-class submarines.

An interesting feature is that the rechargable batteries can be optimized for training as well as combat. This allows them to be launched many more times in training up to 100 times. Generally, the more test launches during training, the better the success rate should be.
World Heavyweight Torpedoes - Covert shores
Black Shark Advanced (BSA) specifications (As reported)
Mode: Dual-purpose
Length: 6.3 m
Diameter: 533mm (21")
Range:
Speed: 50 kt
Max Depth:
Warhead: 350 kg
Propulsion: Electic (Lithium polymer battery) driving a pumpjet
Main guidence: Wire-guided

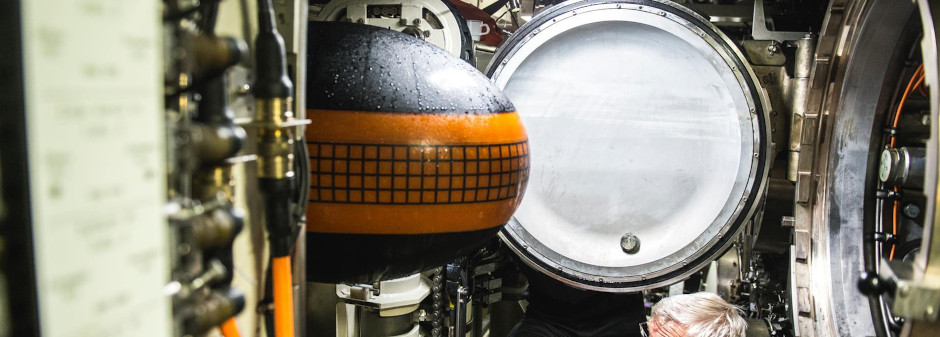

DM2A4 Seehecht (/Sea Hake), Germany

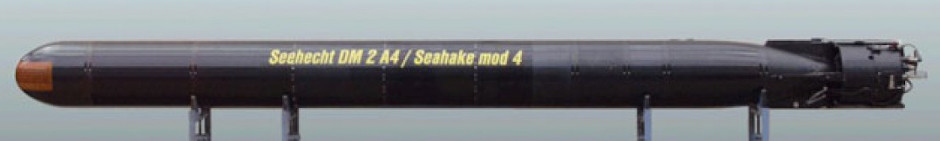

Flag World Heavyweight Torpedoes - Covert shores
DM2A4 Seehecht specifications (As reported)
Mode: Dual-purpose
Length: 6.6 m
Diameter: 533mm (21")
Range:
Speed: 50 kt
Max Depth: 300 m
Warhead: 260 kg of plastic-bonded explosive (PBX) warhead with proximity and contact fuses
Propulsion: Electic (silver-zinc oxide battery) driving a pumpjet
Main guidence: Wire-guided
World Heavyweight Torpedoes - Covert shores

Tiger Shark, South Korea
Flag The new heavyweight torpedo, reportedly named Tiger Shark, is LIG Nex1's follow-up to their current White Shark ( K731 Baek Sang Eo) type. Unlike the earlier model it is wire guided and uses lithium-ion battery technology. The project has been de-risked by leveraging research and development for the Blue Shark (K745 Chung Sang Eo) lightweight torpedo. Service entry is expected in 2020.
World Heavyweight Torpedoes - Covert shores
Tiger specifications (As reported)
Mode: Dual-purpose
Length: 7.1 m
Diameter: 533mm (21")
Range:
Speed:
Max Depth: 300 m
Warhead: 260 kg of plastic-bonded explosive (PBX) warhead with magnetic influence and contact fuses
Propulsion: Electic (Lithium-Ion battery) driving a pumpjet
Main guidence: Wire-guided

Shakti, India

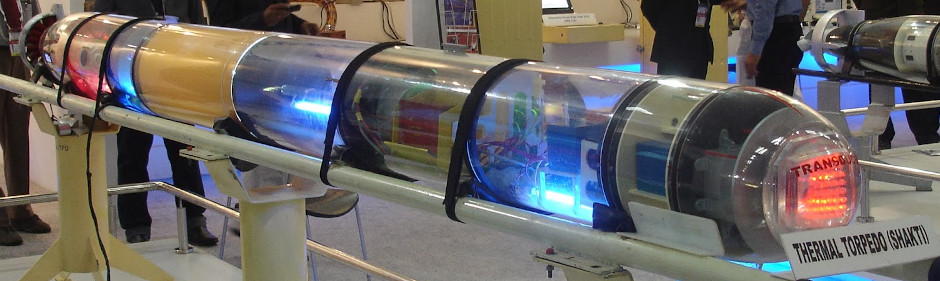

Flag India is also developing a wire-guided thermal torpedo with mono-propellant for submarines.
World Heavyweight Torpedoes - Covert shores
Shakti specifications (As reported)
Mode: Dual-purpose
Length:
Diameter: 533mm (21")
Range:
Speed: 60+ knots
Max Depth: 600 m
Warhead:
Propulsion: 400kw thermal driving a pumpjet
Main guidence: Wire-guided

Varunastra, India

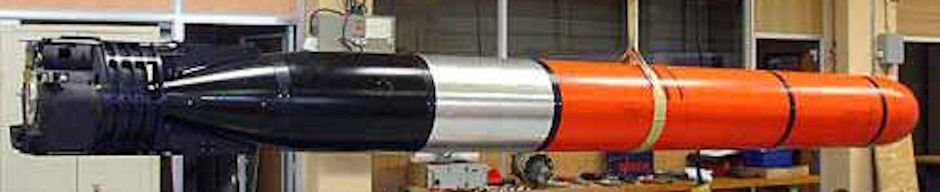

Flag Varunastra is an indigenous torpedo intended service aboard surface ships. It is unclear if a variant will be carried aboard submarines. It is a dual purpose weapon which can home in on surface and subsurface targets.
World Heavyweight Torpedoes - Covert shores
It was inducted into the Indian Navy in 2018. An intial order of 63 units has been placed.
Varunastra specifications (As reported)
Mode: Dual-purpose
Length:
Diameter: 533mm (21")
Range: 22 nautical miles
Speed: 40 knots
Max Depth:
Warhead:
Propulsion: Electric
Main guidence: Autonomous

Takshak, India
Flag India is also developing a dual purpose electric torpedo for both warships and submarines. It will likely superceed both the Shakti and Varunastra.

AKYA, Turkey

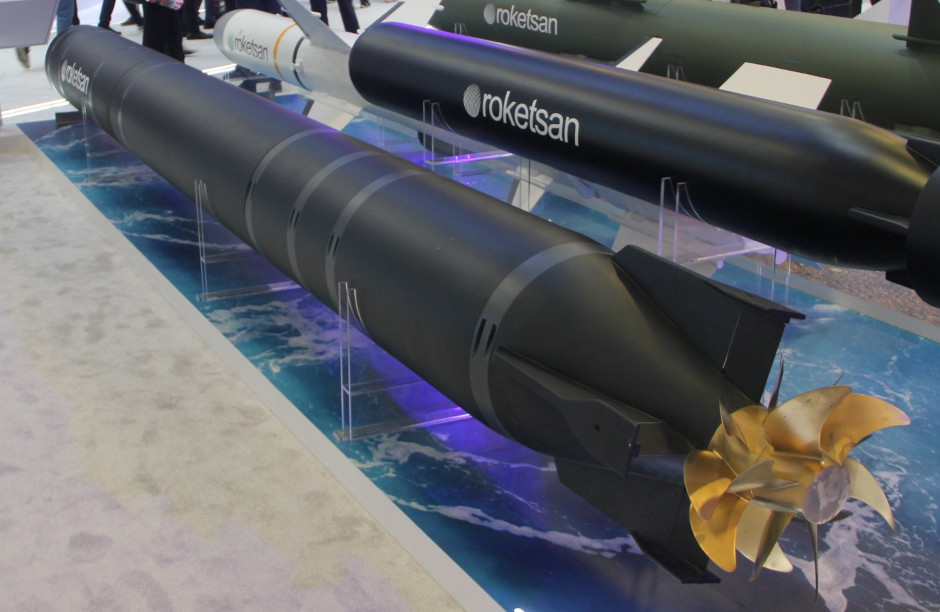

Flag Turkey's indigenous heavyweight torpedo being developred by Aselsan.
World Heavyweight Torpedoes - Covert shores
AKYA specifications (As reported)
Mode: Dual-purpose
Length:
Diameter: 533mm (21")
Range:
Speed:
Max Depth:
Warhead:
Propulsion:
Main guidence: Wire-guided

YT-534-UW1 Valfajr, Iran

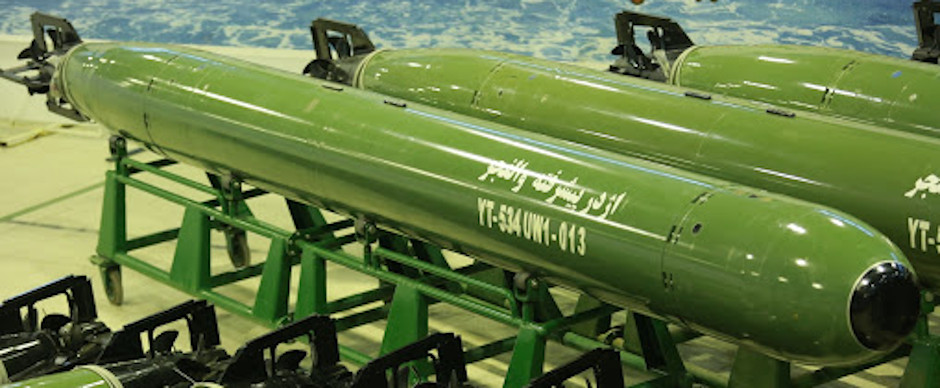

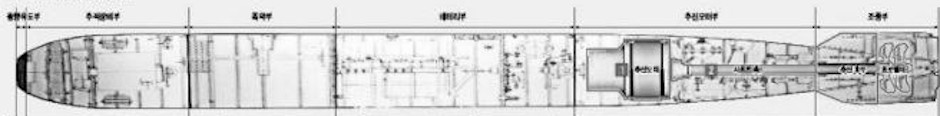

Flag An Iranian development of the North Korean PT-97W design, this is fielded by Iran's indigenous submarines. Serial production started in 2015.
World Heavyweight Torpedoes - Covert shores
YT-534-UW1 specifications (As reported)
Mode: Anti-ship
Length: 8 m
Diameter: 533mm (21")
Range: ~8 nautical miles
Speed:
Max Depth:
Warhead: 225 kg
Propulsion: Electric
Main guidence: Autonomous, wake homing
World Heavyweight Torpedoes - Covert shores

CHT-02D, North Korea

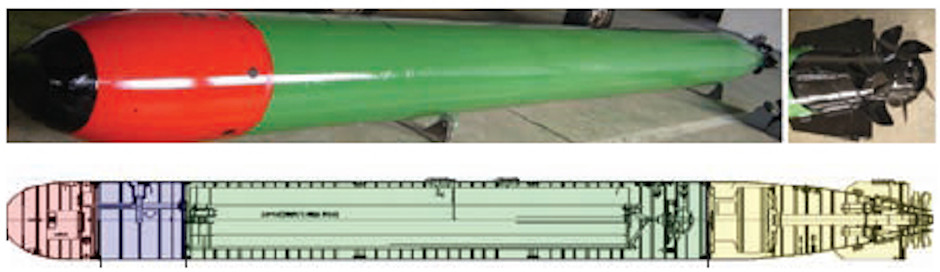

Flag The CHT-02D superseded the interim PT-97W in the 2000s. A moderately sophisticated weapon, it is short ranged and does not have wire guidance. It can however be effective. It is best known as the torpedo used by a North Korean MS-29 Yono Class midget submarine to sink a South Korean corvette. On March 26 2010 the ROKS Cheonan was broken in half by a single explosion under its keel.
World Heavyweight Torpedoes - Covert shores
CHT-02D specifications (As reported)
Mode: Anti-ship
Length:
Diameter: 533mm (21")
Range:
Speed:
Max Depth:
Warhead:
Propulsion: Electric
Main guidence: Autonomous
