Updated with additional images: originally posted 6th Sept. 2018

SLV-Murene diver propulsion device

The MURENE Subsea Light Vehicle (SLV) is the latest generation of Diver Propulsion Device (DPD). It has been designed by French SDV (Swimmer Deliver Vehicle) manufacturer Alseamar to provide optimal ergonomics, protection and performances for two combat divers. It is designed for a range of roles including:

1. Underwater attack

1. Infiltration or exfiltration of commandos

1. Maritime counterterrorism

1. Beaching recognition of amphibious operations

1. Logistic operations

1. Rescue operations

####

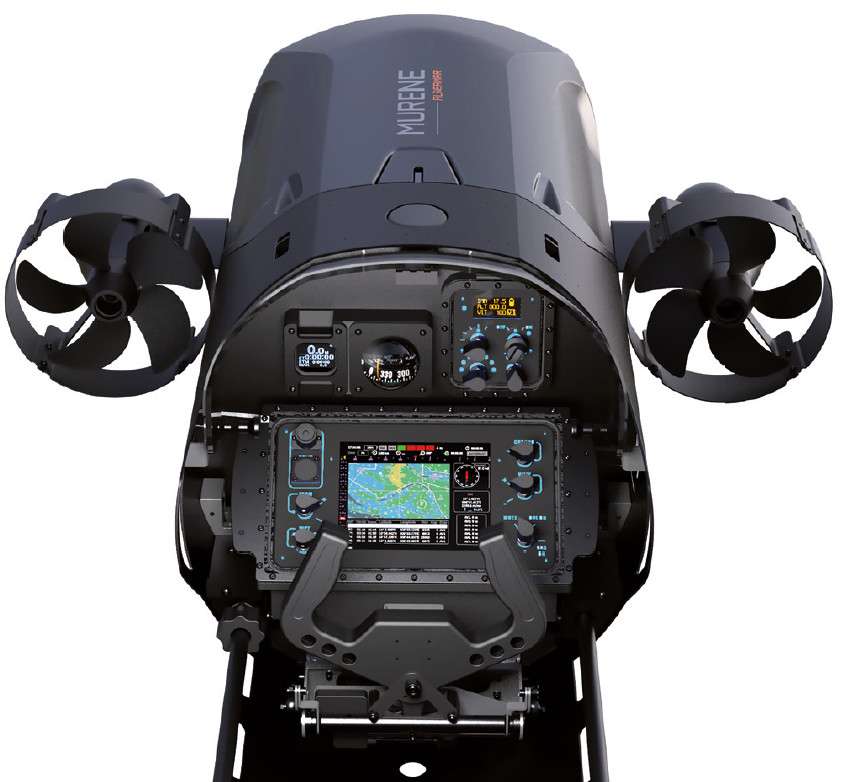

First image via Navalnews.com, rest from Alseamar.

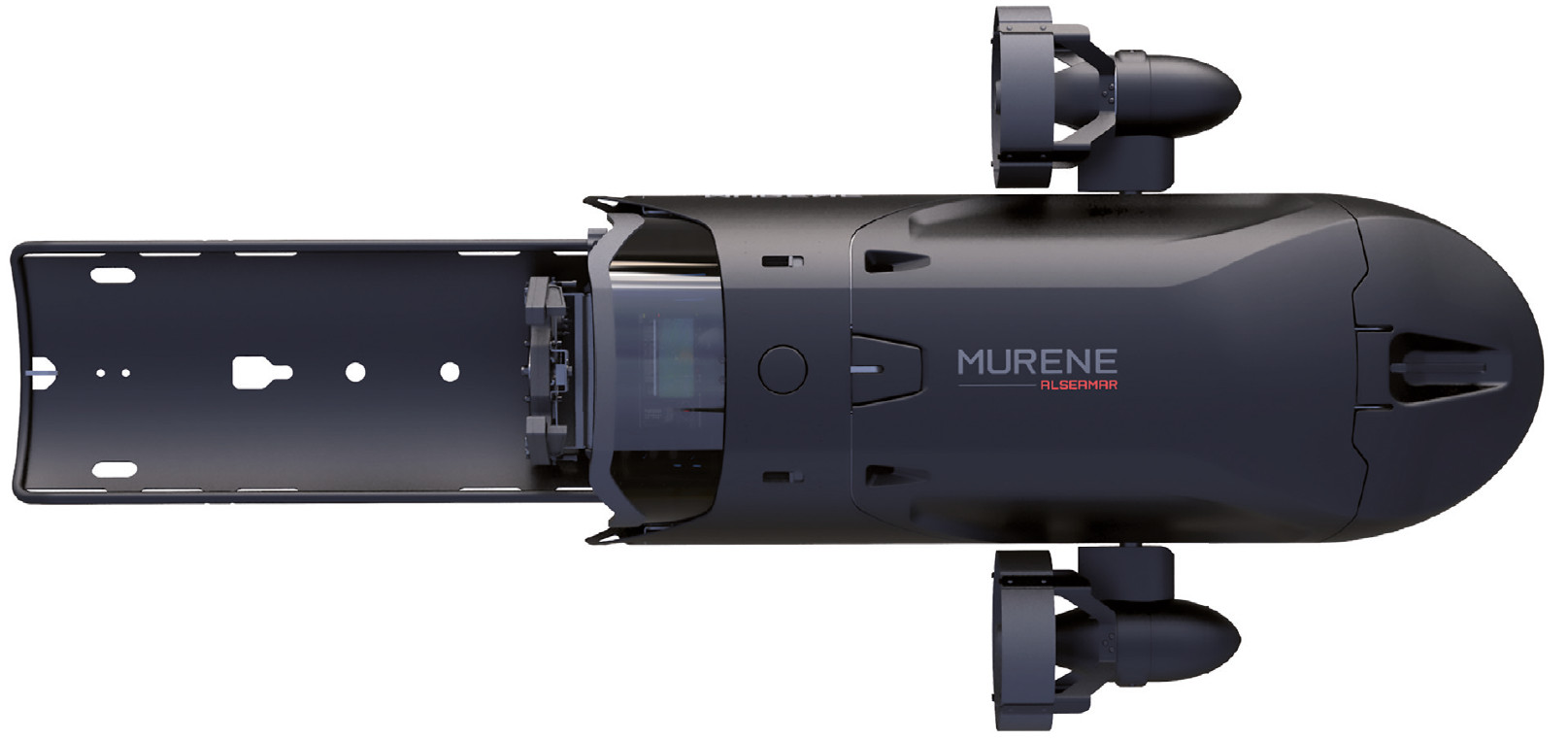

The thrusters, which are used for propulsion and steering, retract into the forward hull and the water shield folds down for compact transit and can be deployed from a submarine through standard 21” (533mm) torpedo tubes, as well as from shore or small boats.

THE book on Special Forces subs Covert Shores 2nd Edition. A world history of naval Special Forces, their missions and their specialist vehicles. SEALs, SBS, COMSUBIN, Sh-13, Spetsnaz, Kampfschwimmers, Commando Hubert, 4RR and many more.
Check it out on Amazon

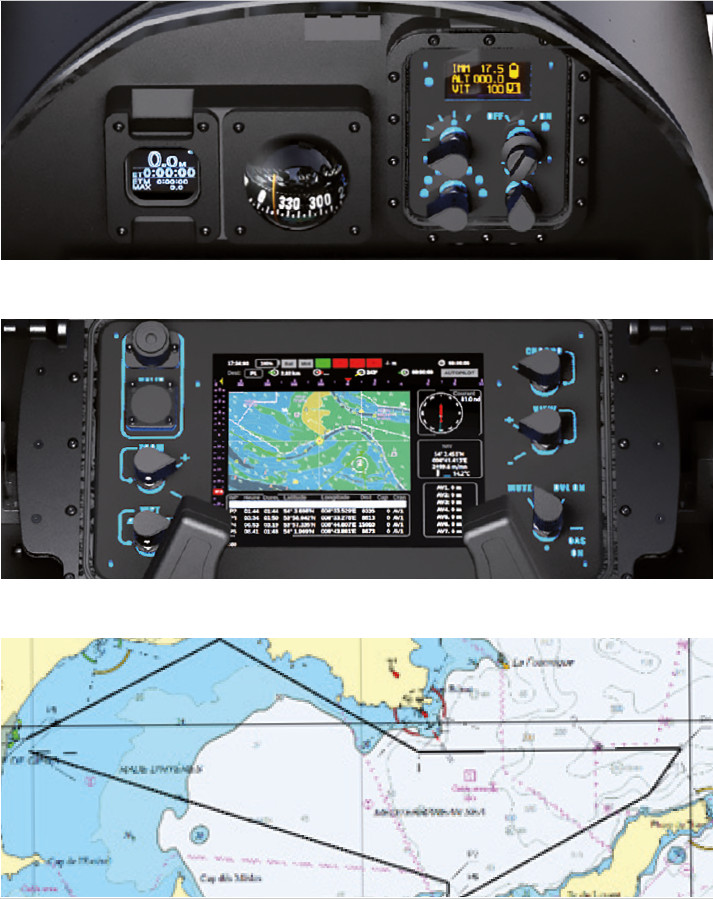

It is fitted with a cutting-edge Inertial Navigation System (INS) coupled to a Doppler Velocity Log and Global Position System (GPS). The full version (Std3) is fitted with a Forward Looking Multi-Beam Sonar which is able to conduct seabed monitoring (Hydrographic survey & GEOINT) before an amphibious operation.

Alseamar will do the official presentation during the EURONAVAL 2018 naval exhibition in Paris on 23-26 October 2018..

Specifications:

Length: 2 meters overall (est)

Diameter (stowed): 0.533mm (est)

Width with thrusters extended: 1 meter (est)

Speed: Up to 4 Knots

Range: Up to 16 Nm at 2 Knots

Weight: less than 135 Kg

Operating Depth: 50 meters

Piloting mode: Manual or semi-automatic

Obstacle detection: Up to 100 meters

Payload: 50 liters

Crew: 1 + 1 passenger

Options: Std1 – Std2 – Std3
