Iranian e-Ghavasi Human Torpedo
This enigmatic ‘Swimmer Delivery Vehicle' developed by Iran takes the term ‘human torpedo’ to the extreme; it is based on a 533mm (21”) heavyweight torpedo with the pilot laying prone in the nose.

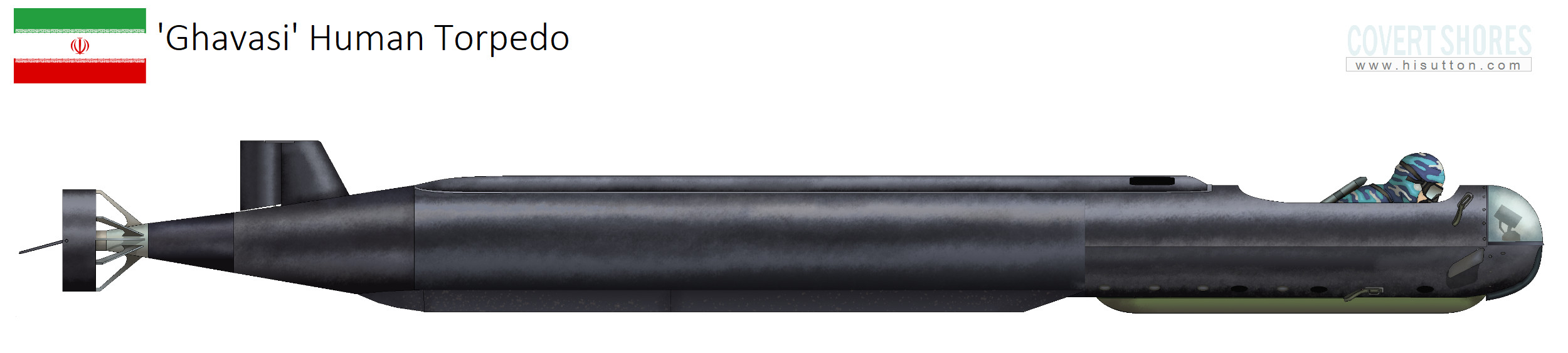

Original artwork: CLICK for HIGH RESOLUTION:
The small diameter with multiple compartments attached end-on-end results in a 7.6m (28ft) long craft. Beneath the pilot, fitting snuggly into a semi-circular recess, is the payload. This is likely a large mine up to 1.5m (4.9ft) long. Breaking from the pure torpedo configuration a fin is added above the aft section of the hull and two stabilizers run along the bottom which together prevent it being stowed in a submarine’s torpedo tubes.
The craft has been demonstrated with a second diver crouching in the cockpit although it’s unclear how he’d fit inside the cramped hull with the pilot.
THE book on Special Forces subs Covert Shores 2nd Edition. A world history of naval Special Forces, their missions and their specialist vehicles. SEALs, SBS, COMSUBIN, Sh-13, Spetsnaz, Kampfschwimmers, Commando Hubert, 4RR and many more.
Check it out on Amazon
An example of a mine which the Ghavasi might be able to carry is this 480kg sea-floor weapon below. It has a diameter of less than 0.5m (I.e. Small enough to recess into the Ghavasi’s 533mm hull) and a length of 2m. It is probable that the mines carried by the Ghavasi would be physically attached to a target however.

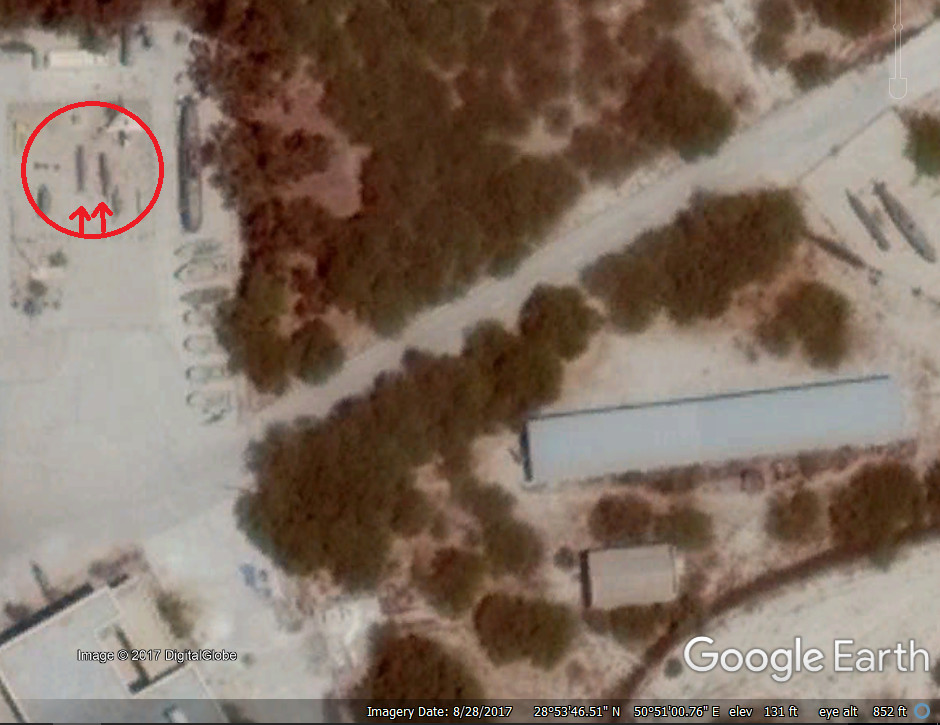

Its operational status remains unclear and may not have actually have entered service. At least two Ghavasi are on display at the maritime museum in Bandar Bushehr, Iran:
