Analysis of leaked Project 885M Yasen-M Submarine images
Flag After the first improved project-885M Yasen-M submarine, K-561 Kazan, was launched at the Sevmash yard on 31st March 2017, images are slowly leaking out of Russia. One of the first may not be what it appears.

This image of the boat tied up alongside at Severodvinsk was leaked and spread through Russian social media on 16th April 2017. Video at Oleg Kuleshov - Twitter). If you look closely at the side of the boat you can see large doors open:
Project 885M Yasen-M Submarine

Project 885M Yasen-M Submarine

This is different to how it was generally imagined the missile hatches would open so the first thought was some form of hangar for AUVs (Automated Underwater Vehicles) or SDVs (Swimmer Delivery Vehicles) like on USS Jimmy Carter.


THE book on Special Forces subs Covert Shores 2nd Edition. A world history of naval Special Forces, their missions and their specialist vehicles. SEALs, SBS, COMSUBIN, Sh-13, Spetsnaz, Kampfschwimmers, Commando Hubert, 4RR and many more.
Check it out on Amazon

However, looking back through images of the original Project-855 Yasen Class boat we see that she has doors that open the same way. She is shown here tied up in approximately the same spot in 2010. This suggests that this is not a new feature:
Project 885M Yasen-M Submarine

After further analysis, it is clear that the open hatches on the Yasen-M are indeed the missile hatch covers. Why they open this way instead of hinging upwards like most SSBNs is unclear.
Project 885 Yasen Submarine
Project 885 Yasen Submarine
Project 885 Yasen Submarine

One possibility is that the ‘new’ image is actually from 2010. Detailed analysis of satellite imagery (admittedly not of the day in question, but showing details such as number and color of cranes) and weather is not conclusive.

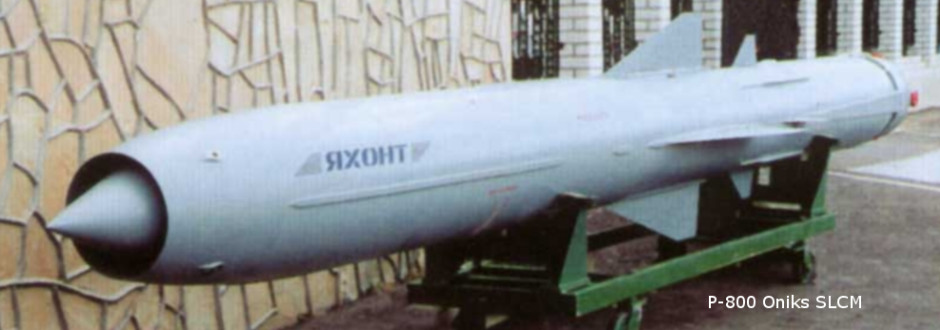

Each VLS tube can reportedly accommodate 4 x P-800 Oniks anti-ship missiles or 5 x Kalibr-PL land attack cruise missiles.
Project 885 Yasen Submarine
Project 885 Yasen Submarine
Project 885 Yasen Submarine

Other images of Project 885M Yasen-M
News Round-up April 2017
News Round-up April 2017

The Malachite designed Pr-885M has a 7-blade screwback propeller instead of the pump-jets found on recent Rubin designed boats:
News Round-up April 2017
