Styx riverine Special Forces craft

Thank you to everyone that made this possible.

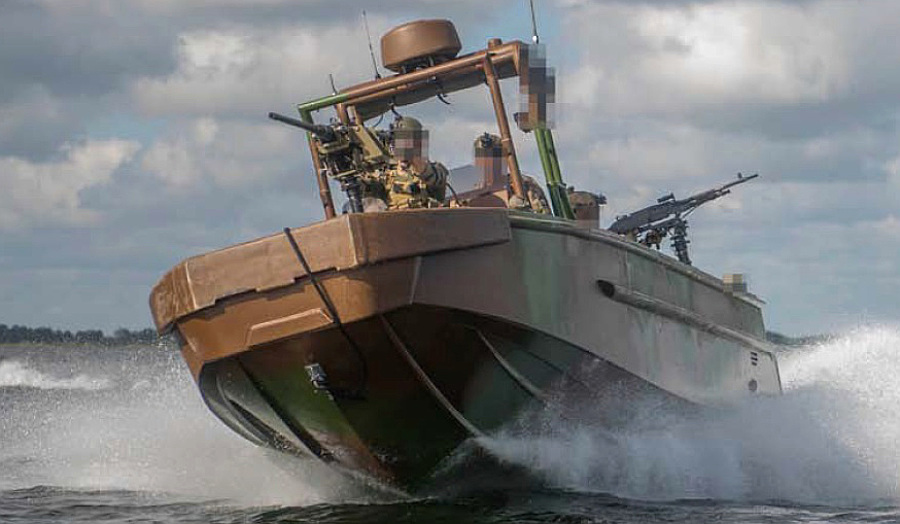

Flag The Seawolf ERF1 Styx is a small riverine craft especially designed for Special Forces and elite forces in inland waterways. Aimed at the French market, it is particularly suited to the jungle and swamp environments that some units often find themselves in, particularly with the scaling back of operations in Afghanistan and the Middle East.
styx
styx
The hull construction is Glass Reinforced Plastic (GRP, aka fiberglass) with foam floatation core and marine aluminum furniture. The twin 250cc 185hp MERCURY OPTIMAX Engines are multi-fuel with JP5, kerosene,TR5, TR8 or Jet A-1. The engine housing are painted with infrared suppressing paint.

It is equipped with a radar mounted on the roll-bar and has two Garmin combined GPS chartplotters-readers. It can also be equipped with a sonar and various VHF communications, all connected via a NMEA 2000 network.
styx
styx

Specifications
Length: 7.8m - 8.2m
Beam: 2.46m
Draft: 0.4m normal, 0.8m fully loaded
Weight: 1,400kg light, 2,100kg fully loaded
Speed: 30-40kt
Endurance: TBC
Personnel: 12
Power plant: 2 x 250cc outboard motors with 500kg of fuel
Armament: 3 x weapons mounts for 1 x 0.50cal and 2 x 7.76mm machine guns

styx
styx

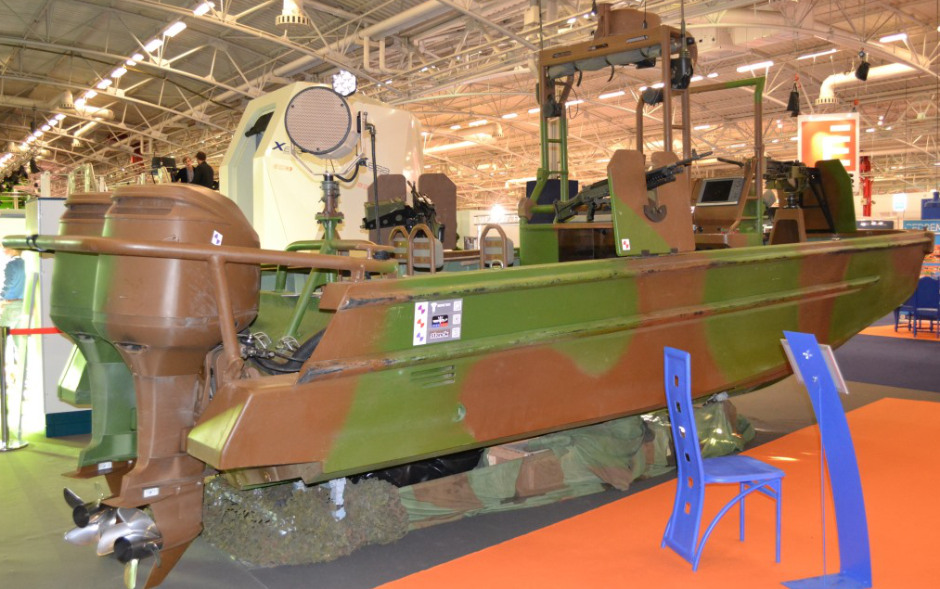

EuroNaval exhibition
styx
styx
styx
styx
styx

Manufacturer's website: http://www.pirenn.com/
