Flag Specialist boat builder Safe Haven Marine have added the stealthy XSV-17 to their Barracuda series of Special Forces craft. The new design features a high speed surfacing planing hull with a wave-piercing bow which allows incredibly high speeds (60kt) while maintaning the impressive sea-keeping of the Barracuda series. The design joins the SV-11 and SV-13 models which have already been prototyped and tested by elite units.
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors

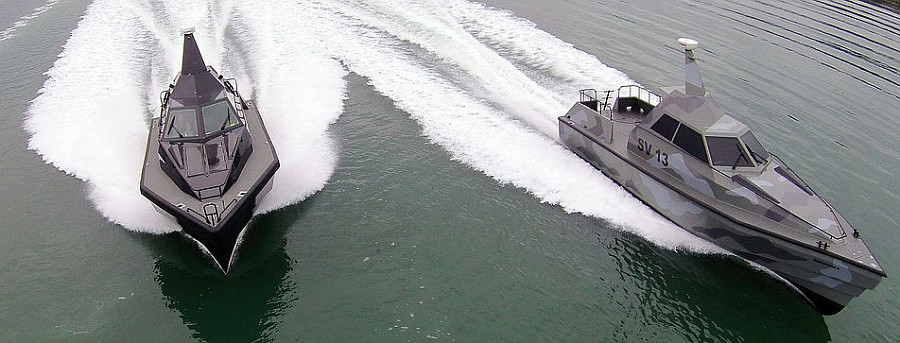

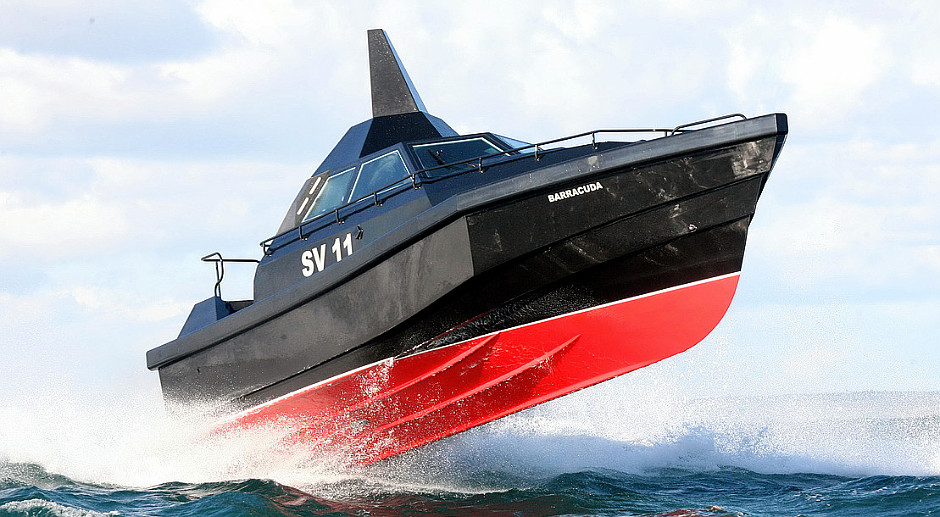

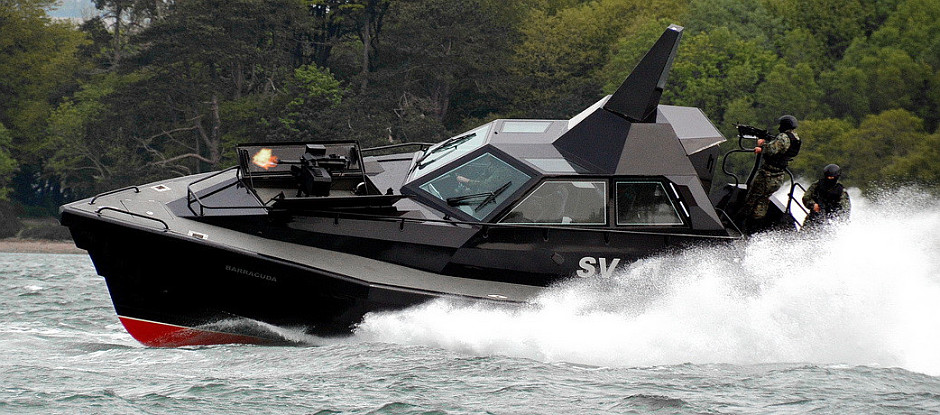

SV-11 (left) and SV-13 put through their paces

Safe Haven Marine are known for the formidable sea-keeping of their small working boats, being at home in the notoriously rough Irish Sea and Bay of Biscay.
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors

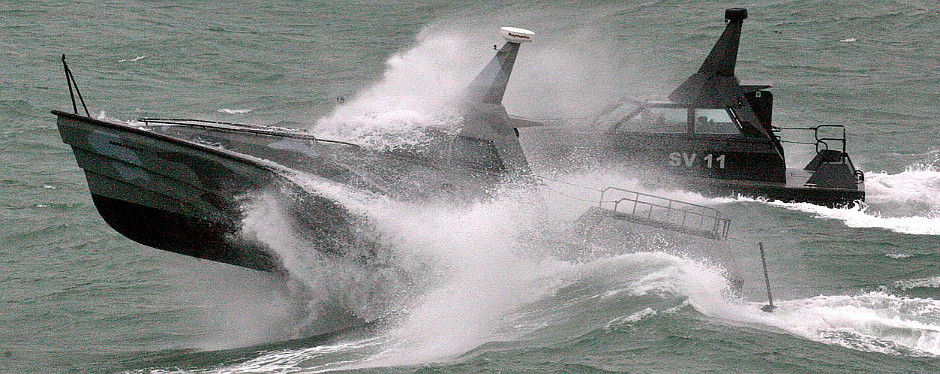

Illustrating the Barracuda’s incredible seakeeping, Save Have Maine testing them in 6m (20ft) waves and 60 mph winds during Storm Desmond, December 2015

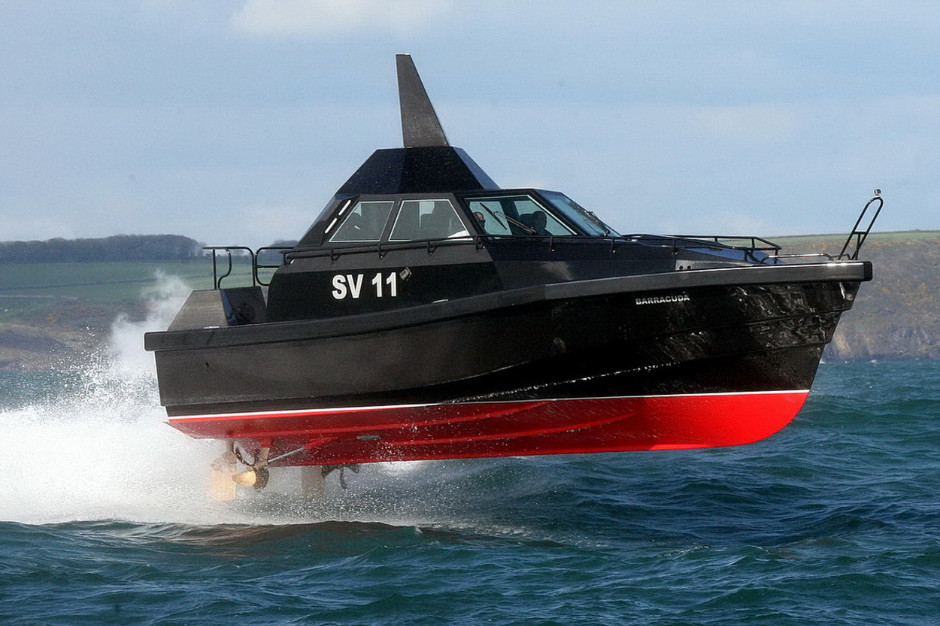

Barracuda SV-11
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors

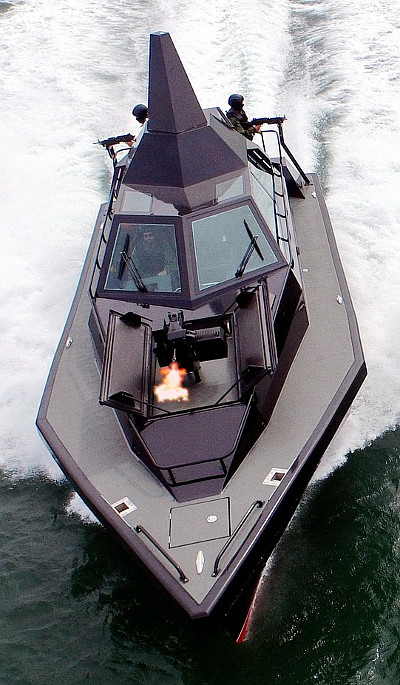

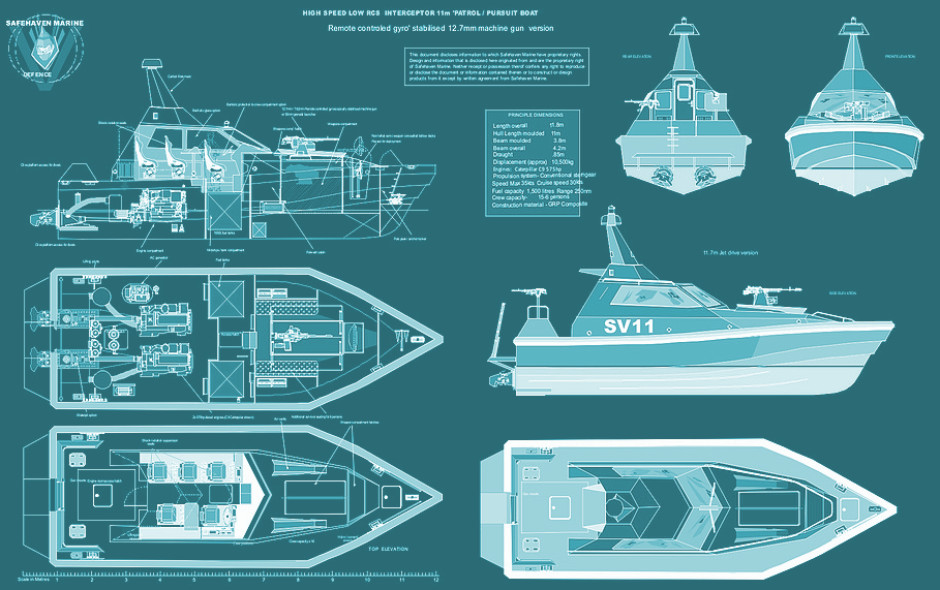

The first Special Forces interceptor from Save Haven Marine was the SV-11 which, as the name implies, was 11m (36ft) long. The boat differs significantly from its competitors in the use of a deep-v semi-displacement / planing hull which is better suited to rough weather than a regular fully planing hull. The compromise is on speed which is limited to 40kt. It also retained the think rubber fender of Save Haven’s pilot and rescue boats, making it ideal for vessel boarding operations.

The watertight cabin and three internal sections allows the vessel to be completely rolled over and remain dry inside. If it does capsize in heavy seas, the hull is self-righting.

The prototype was fitted with propellers for rough sea performance, which allowed 35kt top speed. For inshore and riverine operations waterjets would be preferred and these would allow 40kt top speed.



Specifications
Displacement: 14,500kg (9,500kg lightships)
Lengh: 11m
Beam: 3.95m
Draft: 1.15m
Range: 200nm+
Speed: 40kt max with waterjets, 35kt with props
Capacity: 6 crew plus 10 men (without weapons mount fitted)
Propulsion: 2 x 650hp deisel-electrics driving MJP Ultra Jet 340 waterjets, or props
Armament: 1 x remotely operated, stabilized 12.7mm (.50Cal) heavy machine gun pn retractable mount, 2 x 7.62mm MG on pedestal mounts


safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors

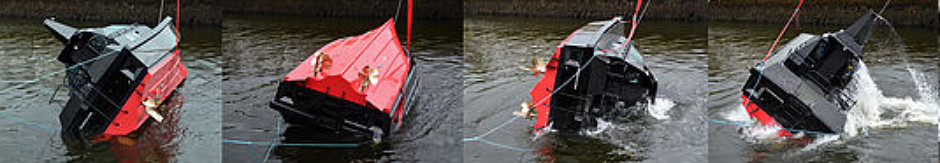

Self-righting test. The cabin was occuped and remained dry.


Learn EVERYTHING about Special Forces subsCovert Shores 2nd Edition. A world history of naval Special Forces, their missions and their specialist vehicles. SEALs, SBS, COMSUBIN, A-DYK, Sh-13, Spetsnaz, Kampfschwimmers, Commando Hubert, 4RR and many more.
Check it out on Amazon

Barracuda SV-13
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors

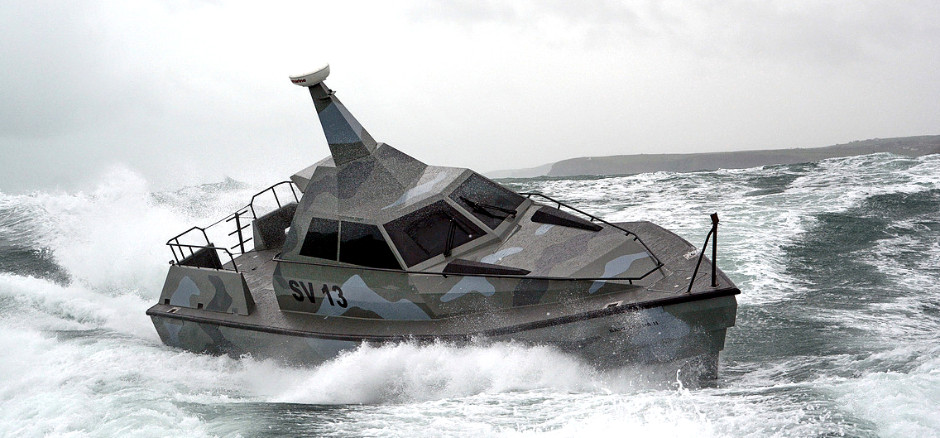

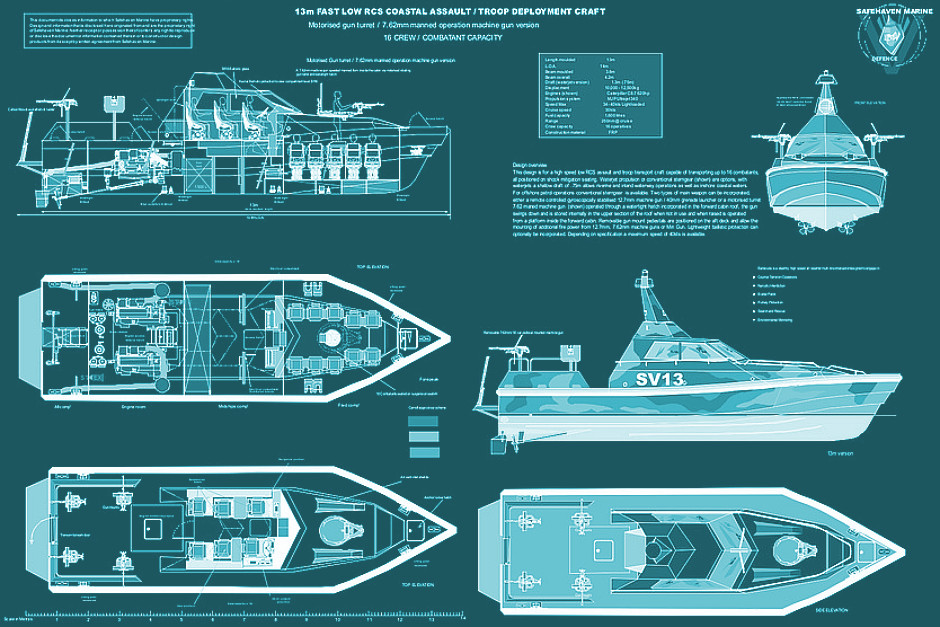

The -13 is slightly larger than the SV-11 with a larger working deck at the stern and other iterative improvements. Like the earlier model the main machine gun mount is concealed under a hatch in the forward deck when not in use.
Specifications
Displacement: 14,500kg (12,500kg lightships)
Lengh: 13.7m
Beam: 4m
Draft: 1.15m
Range: 200nm+
Speed: 40kt max with waterjets, 35kt with props
Capacity: 6 crew plus 10 men (without weapons mount fitted)
Propulsion: 2 x 650hp deisel-electrics driving MJP Ultra Jet 340 waterjets, or props
Armament: 1 x remotely operated, stabilized 12.7mm (.50Cal) heavy machine gun pn retractable mount, 4 x 7.62mm MG on pedestal mounts
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors

Barracuda XSV-17
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors

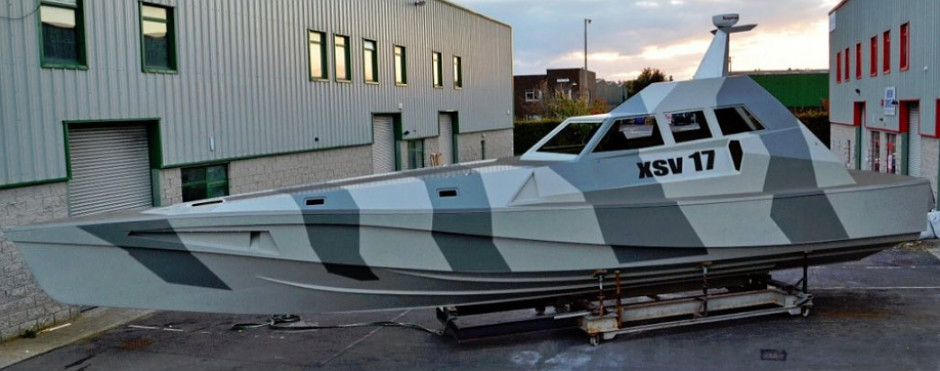

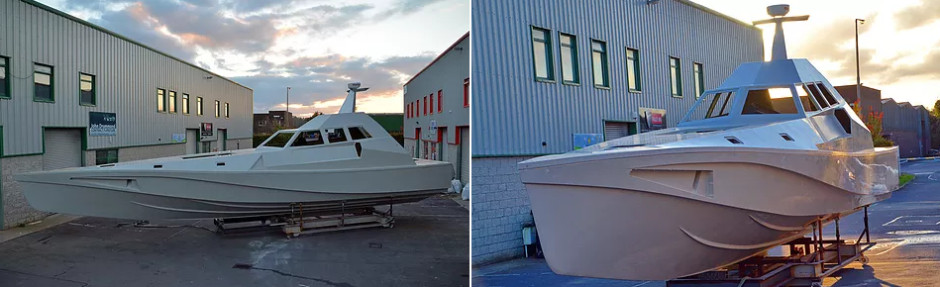

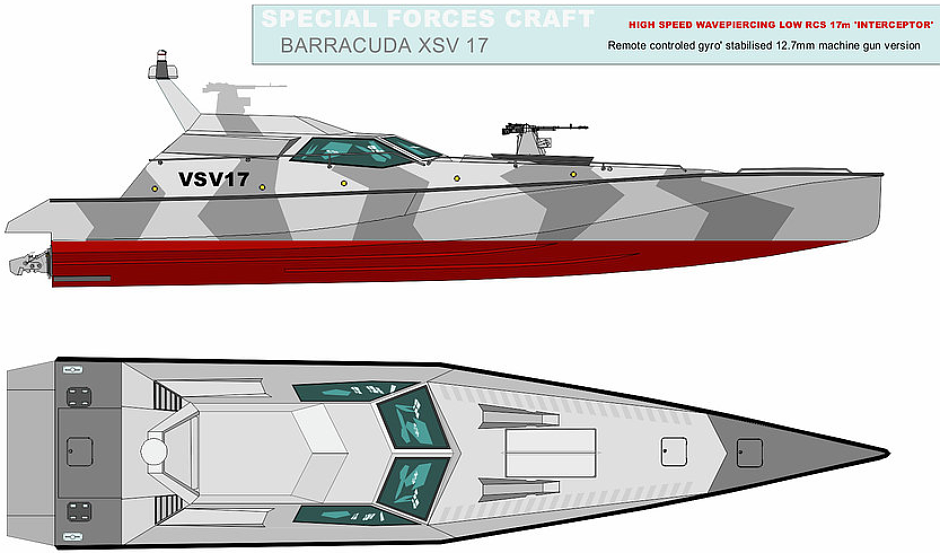

Although the family resemblance is clear, the new XSV-17 is a significant departure from the earlier -11 and -13 models. The longer wave-piercing bow offsets a faster full-planing hull. The retractable machinegun mount is retained, and a second firing position with near 360degrees coverage is added to the cabin roof, but the external crewed positions on the working deck are sacrificed for stealth.
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors
safehaven Marine Engineering Barracuda SV-11 SV-13 XSV-17 Interceptors

Specifications
Displacement: 15,700kg (13,000 lightships)
Lengh: 17.2m
Beam: 4m
Draft: 0.85m
Range: 250-375nm
Speed: 60kt max, 40kt+ cruising
Capacity: 6 crew plus 10 men
Propulsion: 2 x Volvo D13 900hp deisels driving Arneson / Metamarine MJP Hybrid 350 waterjets
Armament: 1 x remotely operated, stabilized 12.7mm (.50Cal) heavy machine gun pn retractable mount, 1 x 7.62mm MG on pedestal mount
