Lazurit_Rescue_Sub

Unbuilt Russian rescue submarine to replace INDIA Class
Russian Spy subs GUGI - Covert Shores
Model at Naval Show in St. Petersburg, 2015.

Flag Russian design bureau Lazurit (Лазурит) may be pitching for a new role for their SIERRA Class attack submarines which were built during the Cold War - as rescue subs. This concept first came to light at the Naval Show in St. Petersburg, 2015. It is interesting partly because Lazurit has been out of the submarine business since the Cold War. Based on patent information (below) this concept is a conversion kit to use an existing nuclear powered attack submarine as a rescue submarine / host submarine. It would therefore replace the retired Project 940 Lenok Class (проект 940 ленок / INDIA Class) which was also designed by Lazurit.

Unbuilt Russian rescue submarine to replace INDIA Class - Covert Shores

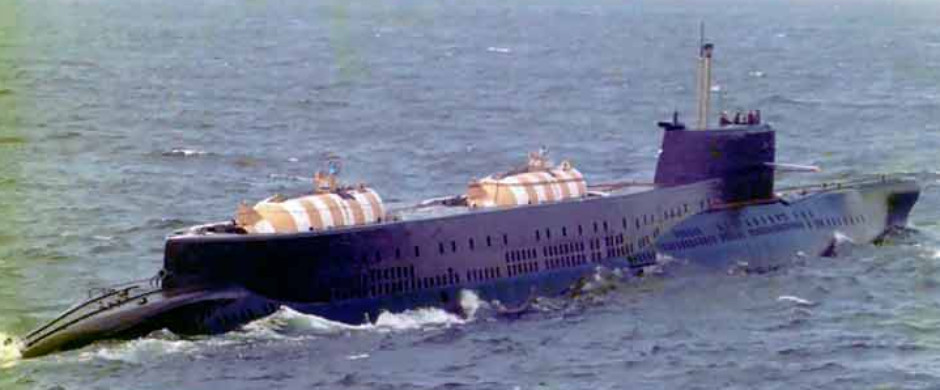

An INDIA Class submarine showing the two Project 1837 deep submersible rescue vessels (DSRV) on deck. The DSRVs can dive down to 2,000 meters (6,500 ft)

Unbuilt Russian rescue submarine to replace INDIA Class - Covert Shores
Cold War US DoD artist's impression of the INDIA Class rescuing a sunken November Class SSN.

The hull is clearly a Project 945 SIERRA Class (проект 945) SSN which has a titanium hull. Wet hangars are mounted in a wide whale-back which also encases the sail.
Unbuilt Russian rescue submarine to replace INDIA Class - Covert Shores
Unbuilt Russian rescue submarine to replace INDIA Class - Covert Shores

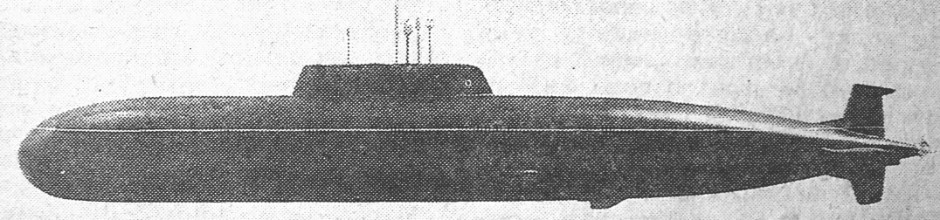

A Lazurit model of a variation of the Project-945AB SIERRA-II hull (this is interesting as another unbuilt project).
SIERRA Class SSN main article


THE book on Special Forces subs Covert Shores 2nd Edition. A world history of naval Special Forces, their missions and their specialist vehicles. SEALs, SBS, COMSUBIN, Sh-13, Spetsnaz, Kampfschwimmers, Commando Hubert, 4RR and many more.
Check it out on Amazon

Patent evidence
In 2016 Lazurit patented a generally similar submarine concept (Here (in Russian))
Unbuilt Russian rescue submarine to replace INDIA Class - Covert Shores
Key:

  1. Combat submarine - clearly a SIERRA Class SSN
  2. Removable rescue unit
  3. Deep Sea Rescue Vehicles (DSRV) - clearly Project 18271 "Bester"
  4. Removable module unmanned underwater apparatus
  5. Removable modules communicate with the submarine body through coaming native-platform
  6. Additional coaming-platform
  7. Docking station
  8. Thruster to allow submarine to hover
  9. Anchor
  10. Submarine's own esape pod (rescue capsule)

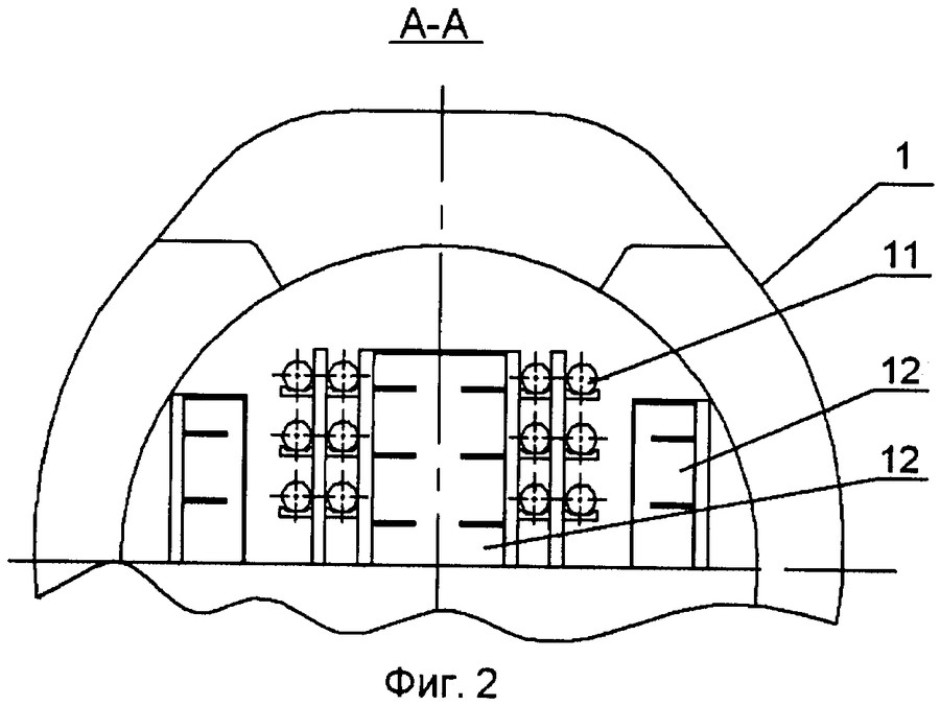

Cross-section of the submarine's torpedo room:
Unbuilt Russian rescue submarine to replace INDIA Class - Covert Shores

  1. temporary storage of compressed gas cylinders on torpedo racks
  2. Temporary additional accommodation for rescue crew and survivors

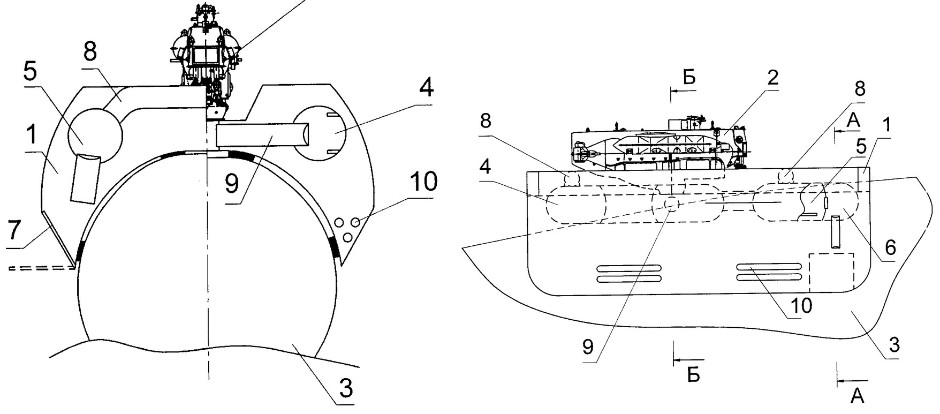

An earlier 2012 patent by Lazurit (Here (in Russian))showed a similar concept:
Unbuilt Russian rescue submarine to replace INDIA Class - Covert Shores

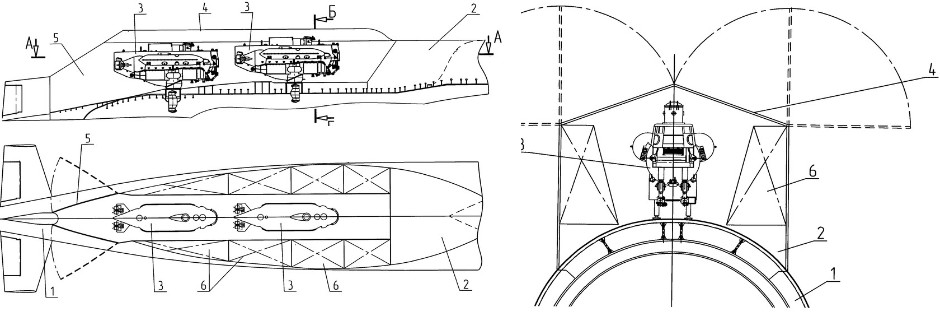

And another (Here (in Russian)):
Unbuilt Russian rescue submarine to replace INDIA Class - Covert Shores

And for a diesel-electric submarine (Here (in Russian)):
Unbuilt Russian rescue submarine to replace INDIA Class - Covert Shores

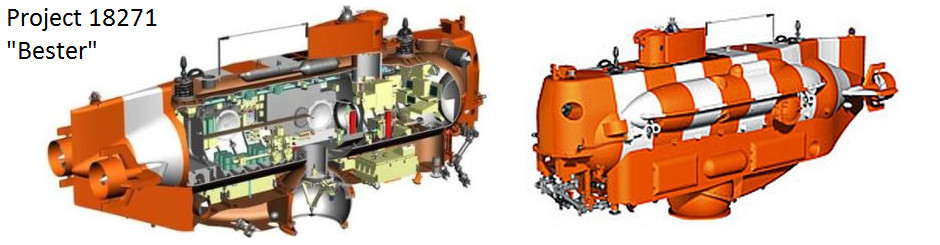

Project 18271 "Bester" submersible
The orange and white midget submarine is a Project 18271 "Bester" ("Бестер" пр.18271) recue submersible which can also be used for general purpose 'underwater engineering' such as working on seabed sonar arrays:
Russian Spy subs GUGI - Covert Shores
Russian Spy subs GUGI - Covert Shores
Russian Spy subs GUGI - Covert Shores
A Project 18271 "Bester" shown being used for underwater engineering. The cylindrical capsule on the seabed is a nuclear reactor.
