Unbuilt_Russian_Spy_Subs

Multifunctional underwater station (MPS)
Russian Spy subs GUGI - Covert Shores

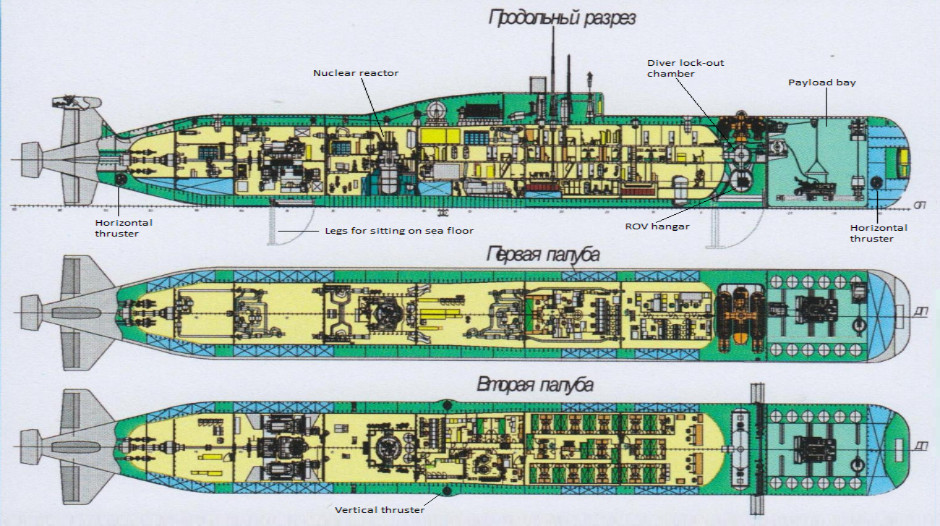

Flag In 2010 the Russian Ministry of Industry and Trade patented a ‘Multifunctional underwater station (MPS) (Russian: Многофункциональная подводная станция (МПС). Two years later Russian submarine design bureau Lazurite proposed the same design for a range of underwater engineering tasks. Although presented as a civilian platform the design gives us good insight into the Russian ‘deep station’ spy submarines operated by GUGI (Main Directorate of Deep-Sea Research, Military Unit 40056). Critically, the design is quite slow (just 12 knots) but has a massive 1,060 cubic meter integral payload bay (about as large as a three story house) allowing it to place or retrieve large items on the sea floor.

Lazerite listed its roles as all-weather and under-ice underwater search / survey, scientific research, underwater engineering and ‘general diving operations.

CLICK for high-resolution image:

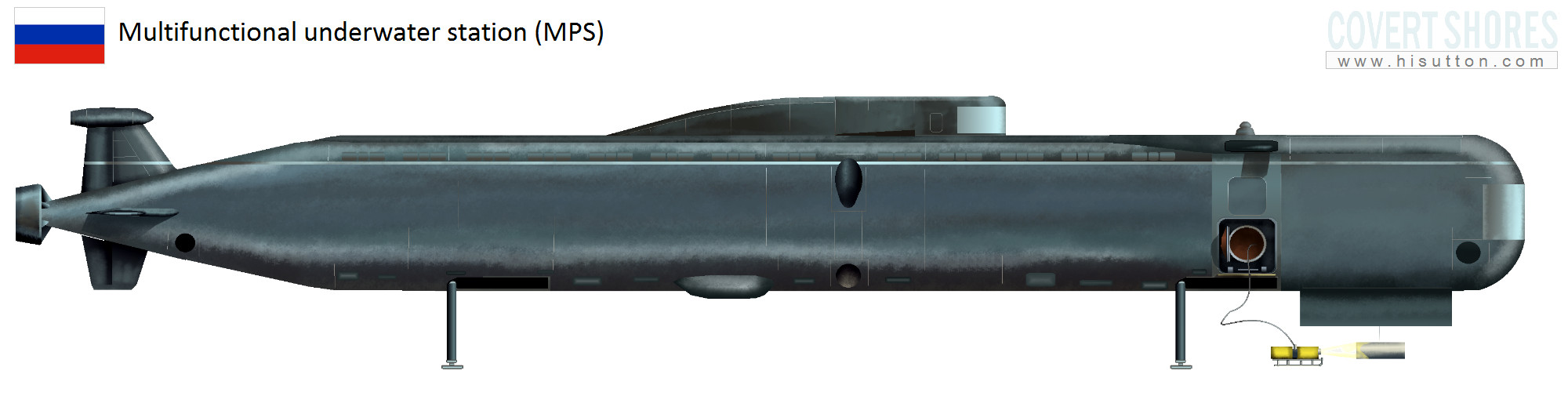

Specifications
Displacement: 5,800 tons surfaced
Length: 116 meters
Beam: 11 meters
Height: 15 meters
Speed: 12 knots
Operating depth: 400 meters
Crew: 40
Endurance: 45 days supplies
Armament: none
Payload: 4 x AUVs (UUVs), payload bay for ocean engineering items

2015 model

The ultimate book of Special Forces subs Covert Shores 2nd Edition is the ONLY world history of naval Special Forces, their missions and their specialist vehicles. SEALs, SBS, COMSUBIN, Sh-13, Spetsnaz, Kampfschwimmers, Commando Hubert, 4RR and many more.
Check it out on Amazon

In 2015 Lazurite proposed a refined design:
Russian Spy subs GUGI - Covert Shores

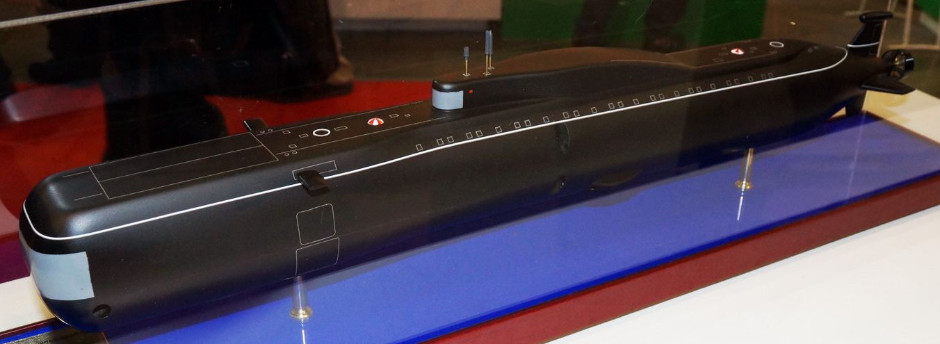

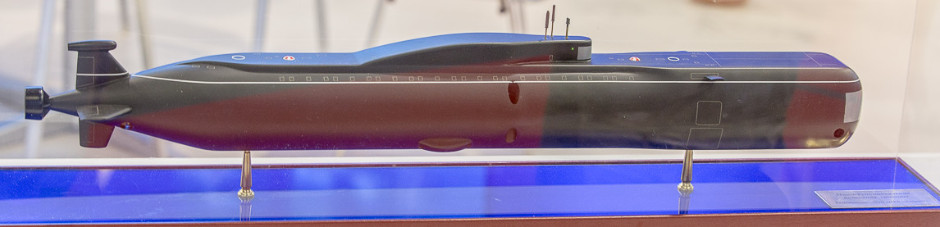

A Lazurite Design Bureau model on display at the Naval Show in St. Petersburg, 2015.
Russian Spy subs GUGI - Covert Shores

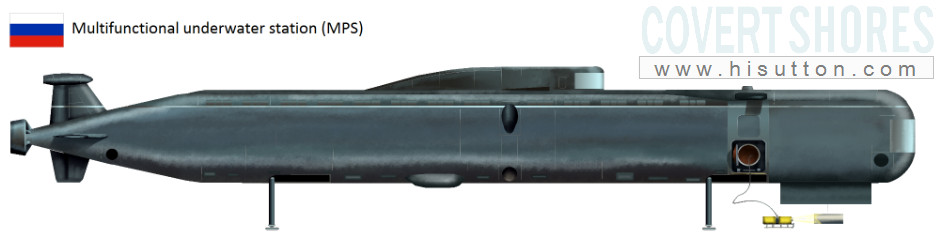

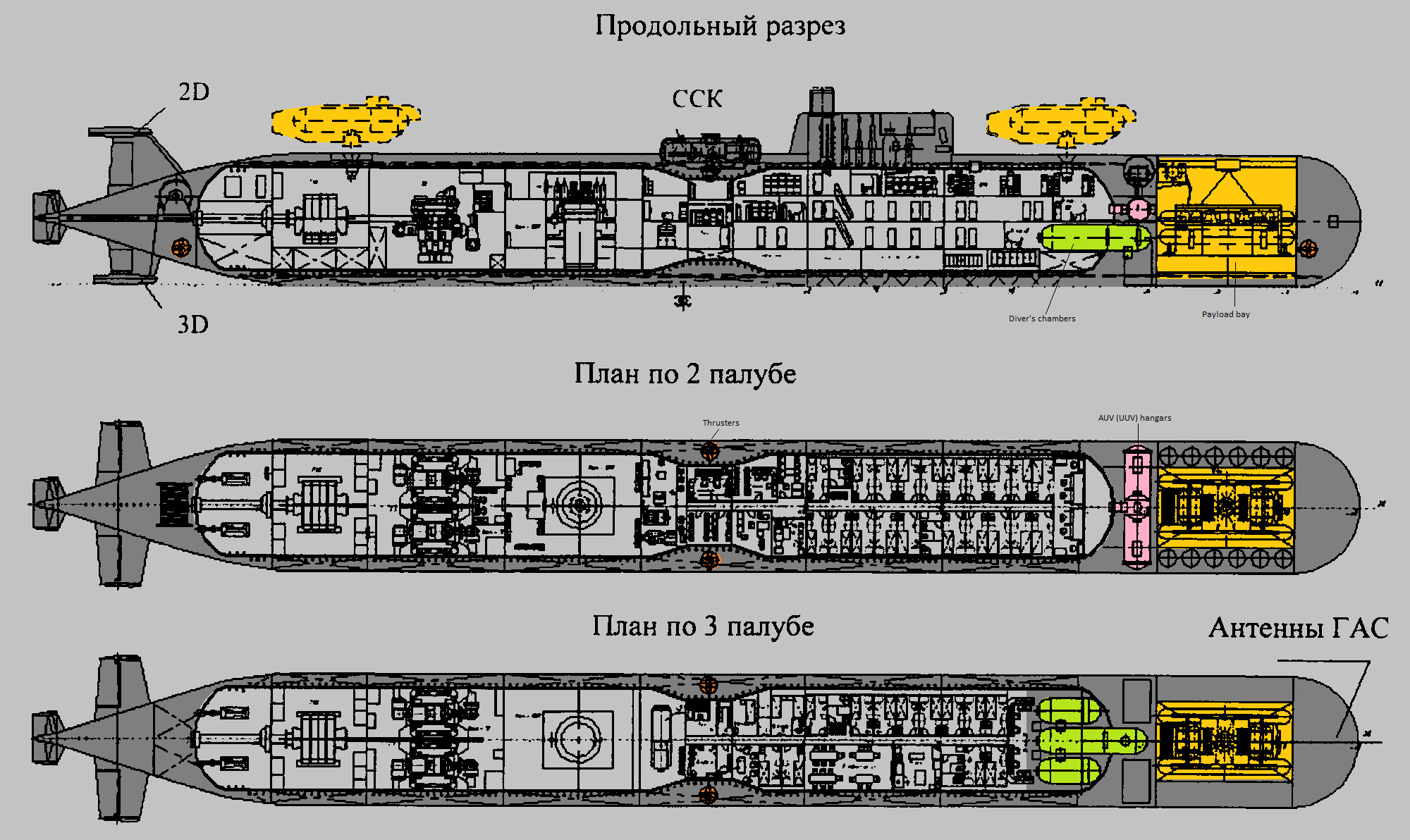

Original Artwork - CLICK for high-resolution image:

Specifications
Displacement: 5,900 tons surfaced
Length: 117 meters
Beam: 15 meters
Height: 16.2 meters
Speed: 13 knots
Operating depth: 400 meters
Crew: 40 + 48 scientists/divers/passengers for a total of 128 people
Endurance: 30 days supplies
Armament: none
Payload: 4 x AUVs (UUVs), payload bay for ocean engineering items
Diving operations depth: 300m

Russian Spy subs GUGI - Covert Shores
The main payload bay has clamshell doors in the roof to allow dockside access to load or unload large items.

Another design
Russian Spy subs GUGI - Covert Shores
Another design concept shown at the Naval Show in St. Petersburg, 2015. This may simply be a rescue submarine to replace the retired Project 940 Lenok Class (INDIA Class). The hull is very similar to the Project 945AB SIERRA-II (проект 945АБ Марс) suggesting that it would have a Titanium hull. Wet hangars are mounted in a wide whale-back which also encases the sail.
Russian Spy subs GUGI - Covert Shores

The orange and white midget submarine is a Project 18271 "Bester" ("Бестер" пр.18271) recue submersible which can also be used for general purpose 'underwater engineering' such as working on seabed sonar arrays:
Russian Spy subs GUGI - Covert Shores
Russian Spy subs GUGI - Covert Shores
Russian Spy subs GUGI - Covert Shores
A Project 18271 "Bester" shown being used for underwater engineering. The cylindrical capsule on the seabed is a nuclear reactor.
