SMX-31

Updated. Originally posted 31st Oct 2018

Share:

SMX-31 future submarine concept: 'The Electric'
Naval Group traditionally unveils ambitious concept submarines at the bi-annual Euronaval exhibition in Paris. This year they revealed the SMX-31.
SMX-31 - Covert Shores

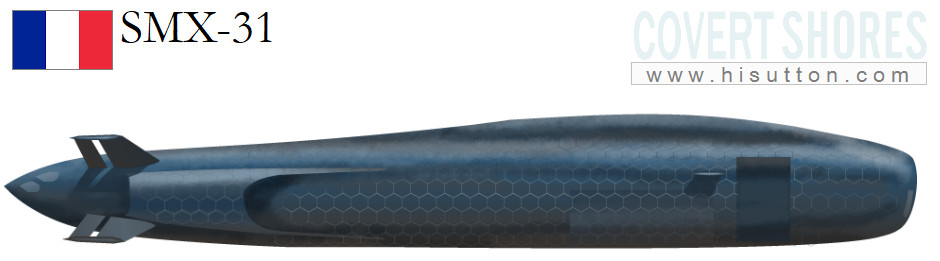

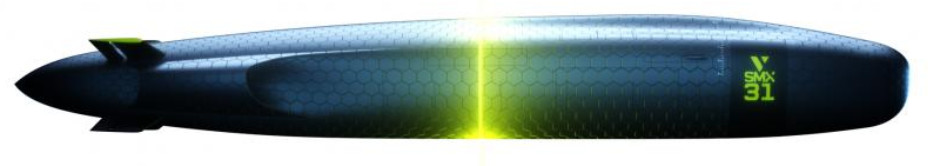

The most obvious feature is the elimination of the sail (‘kiosk’ in French parlance) although there is a slight turtle-back covering the escape capsule. The pressure hull is buried within a lighter outer hull with the overall form influenced by the Sperm Whale. The design is reminiscent of the similarly exotic SMX-26 design shown in 2012.

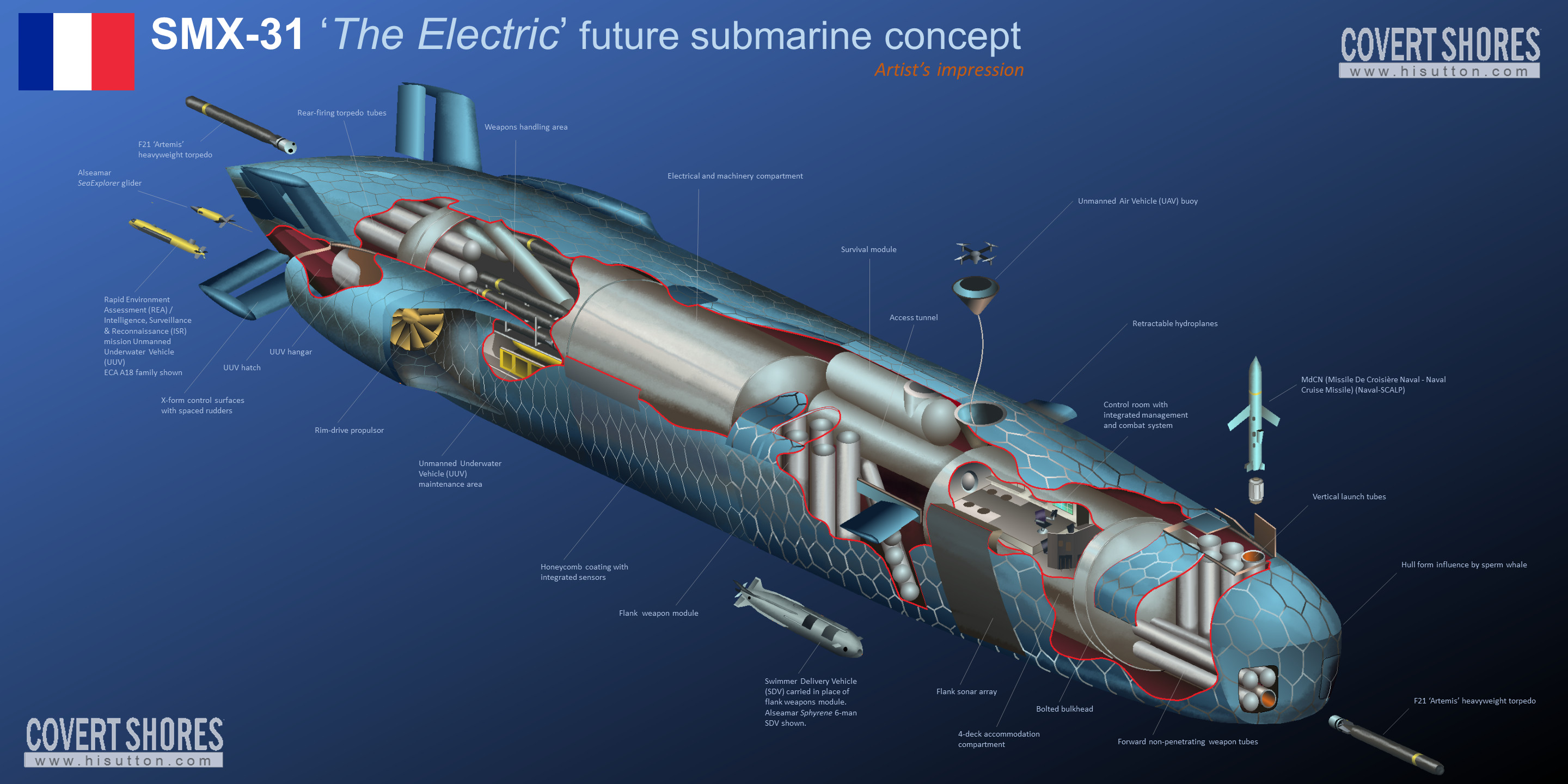

Original Artwork, CLICK for HIGH RESOLUTION:

Although the boat retains mast-mounted sensors, it incorporates a number of less typical features to increase situational awareness and Intelligence, surveillance and reconnaissance features. An unmanned air vehicle (UAV) buoy can be deployed from up to 100 meters depth. The skin incorporates sensors and there is a large unmanned underwater vehicle (UUV) hangar at the stern with spacious UUV (/AUV) maintenance space inboard.

The combat load of up to 46 heavyweight weapons (torpedoes / cruise missiles) is much more than other submarines of this displacement. Most of the weapons are carried externally to the pressure hull but there is a conventional internal torpedo room in the aft-most compartment. The flank weapons module can be replaced with a Special Forces chamber with lock-out trunk. In the Special Forces configuration multiple Swimmer Delivery Vehicles (SDVs) can be carried in the outer hull.


Get The essential guide to World Submarines
This Covert Shores Recognition Guide Covers over 80 classes of submarines including all types currently in service with World Navies.
Check it out on Amazon

SMX-31 - Covert Shores
The all-electric boat uses advanced batteries powering two rim-drive propulsors (pump jets) mounted in streamlined casings. This arrangement leaves the stern area free for a rear-facing torpedo room and hangar space.

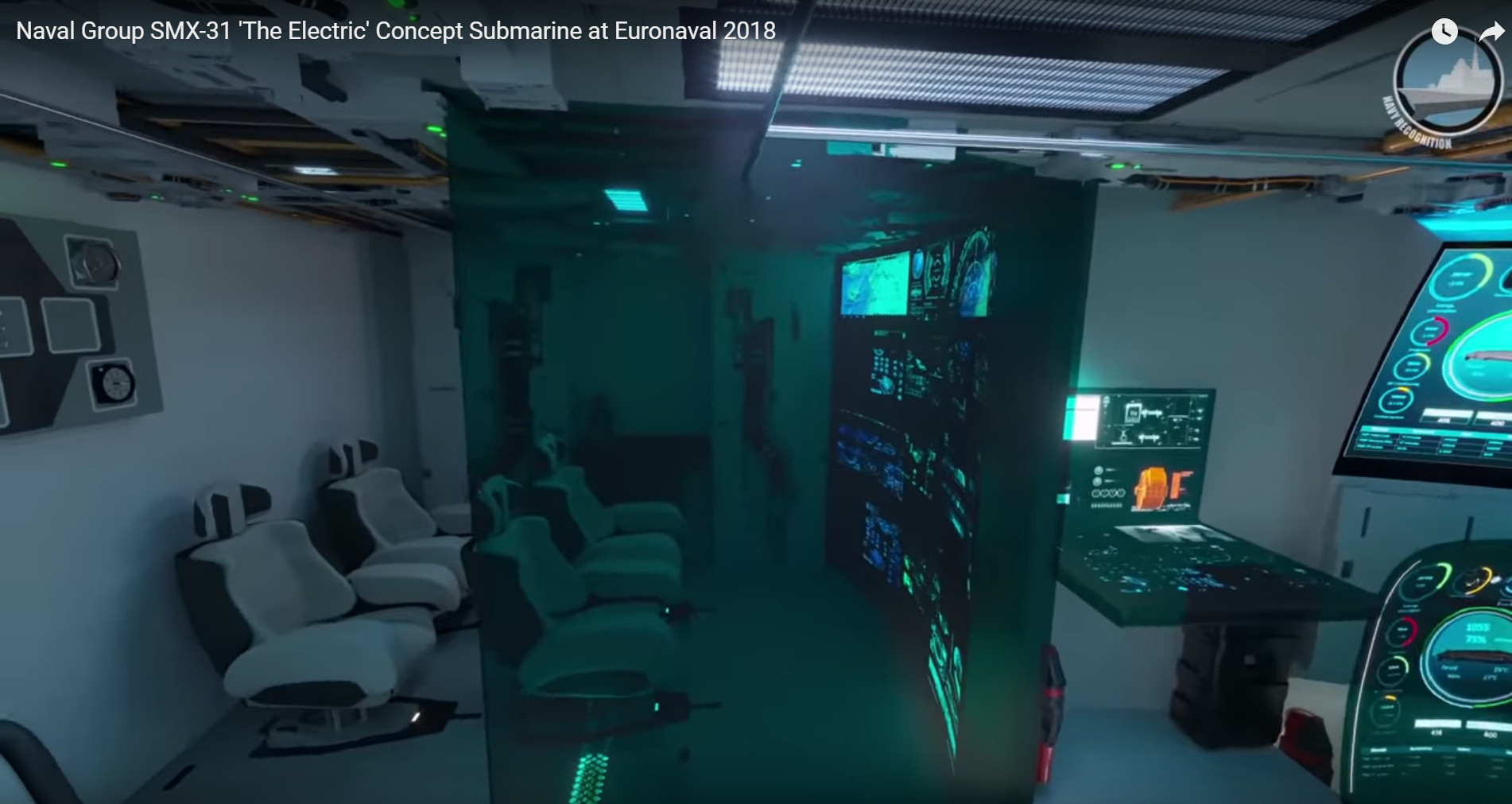

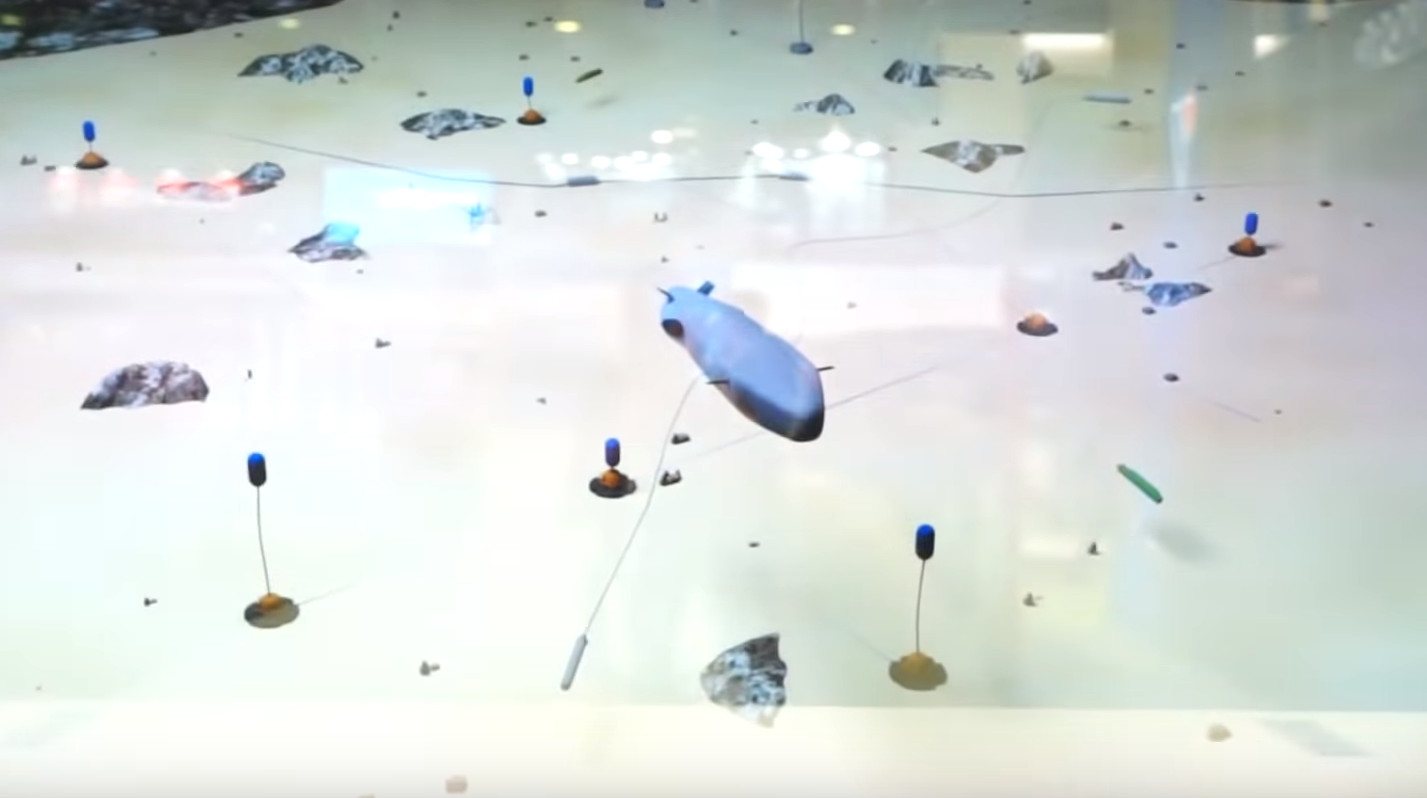

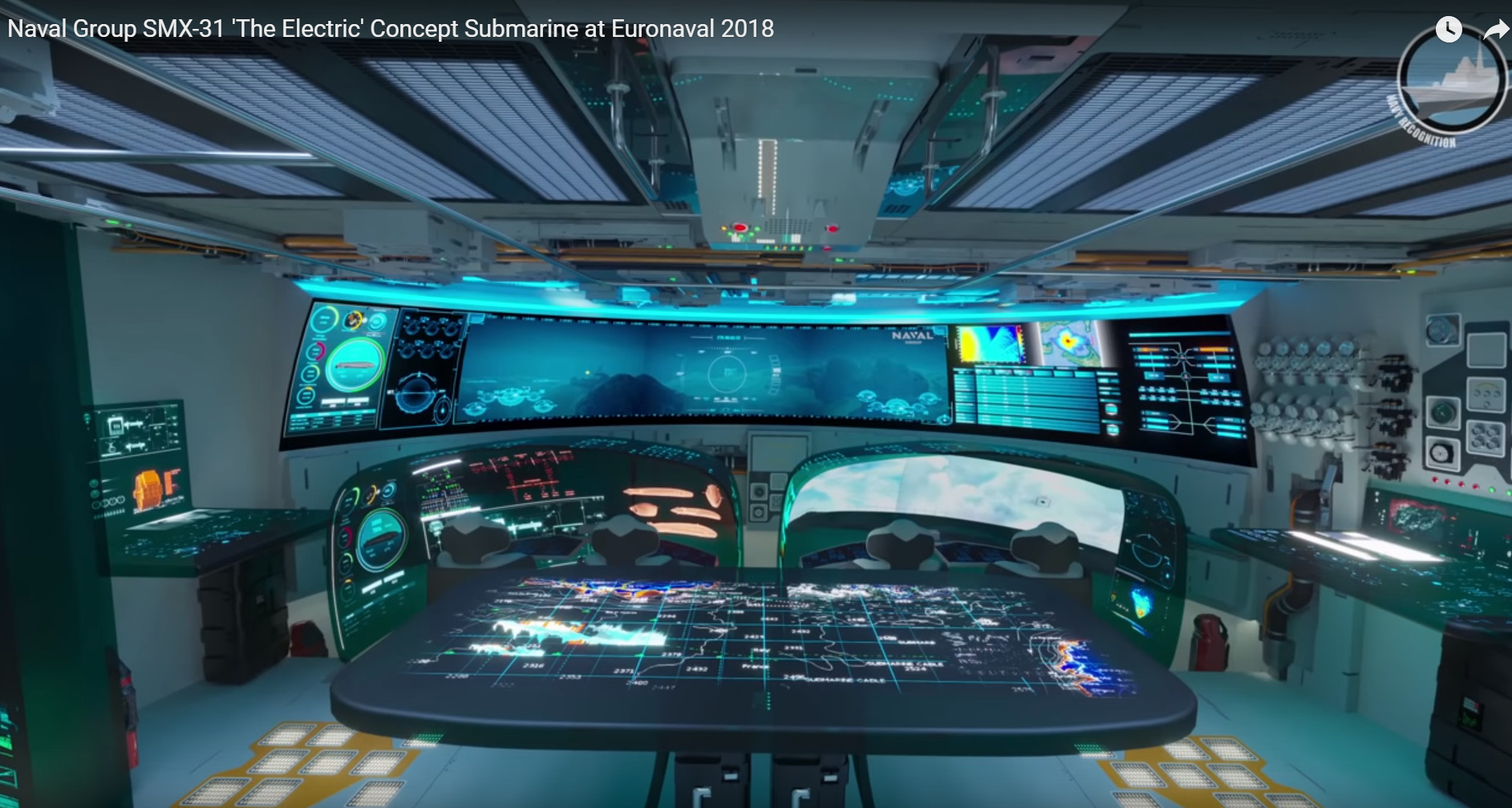

Screen captures from Youtube (Navy Recognition channel)

Specifications
Displacemet: 3,400 tons submerged
Length: ~70m
Beam: 13.8m overall
Height: 13.8m
Operating Depth: >250m
Speed: 20 kt
Endurance: 30-45 days
Propulsion: TBC, all-electric
Crew: 15
Armament: 16 - 46 x 533mm (21") launch tubes in both horizontal and vertical configurations.
Stand-off sensors: Wire connected small ROVs, torpedo-shaped UUVs/ROVs and buoy-launched UAVs

SMX-31 - Covert Shores
SMX-31 - Covert Shores
SMX-31 - Covert Shores


Learn EVERYTHING about Special Forces subs Covert Shores 2nd Edition. A world history of naval Special Forces, their missions and their specialist vehicles. SEALs, SBS, COMSUBIN, Sh-13, Spetsnaz, Kampfschwimmers, Commando Hubert, 4RR and many more.
Check it out on Amazon

SMX-31 - Covert Shores

Additional reading and videos at Navy Recognition and Youtube (Navy Recognition channel)
